FEMS App enerixControl

1. Introduction

Dear customer,

Thank you for choosing the "FEMS App enerixControl". You are welcome to send us your suggestions so that we can further improve the quality of our products.

1.1. Visualization and configuration in the FEMS Online Monitoring

After installing the FEMS App enerixControl, you will see the following widget in your live monitoring:

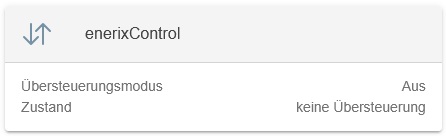

enerix flat widget
Figure 1. Flat widget

The following information is displayed in the widget:

  • Override mode: ON or OFF.

  • State: indicates whether an override by FEMS App enerixControl is currently taking place.

    • no override: the FENECON system is currently not overridden.

    • Override: the FENECON system is currently controlled by FEMS App enerixControl.

Click on the widget to open the detailed view of the FEMS app:

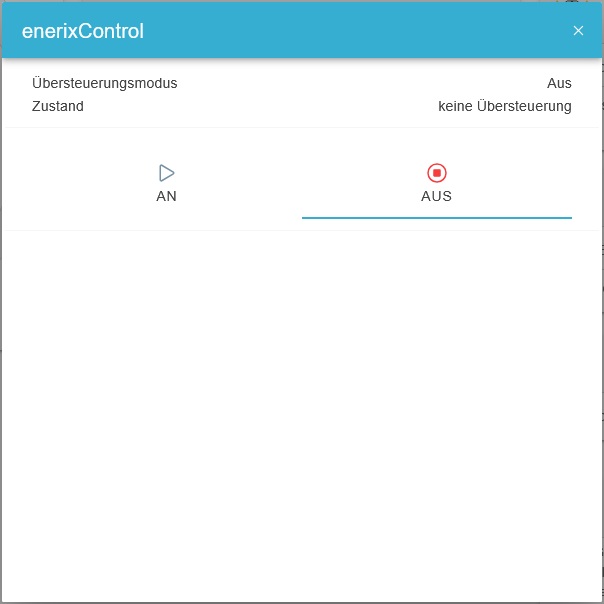

enerix detail widget
Figure 2. Detail widget

  1. Open the detailed view of the FEMS App to activate the override by FEMS App enerixControl.

enerix detail widget
Figure 3. Activate FEMS App enerixControl — Step 1

  1. Select " AN" in the "Mode" tab and confirm your change by clicking on the blue tick.

  2. The override is then activated by the FEMS App enerixControl.

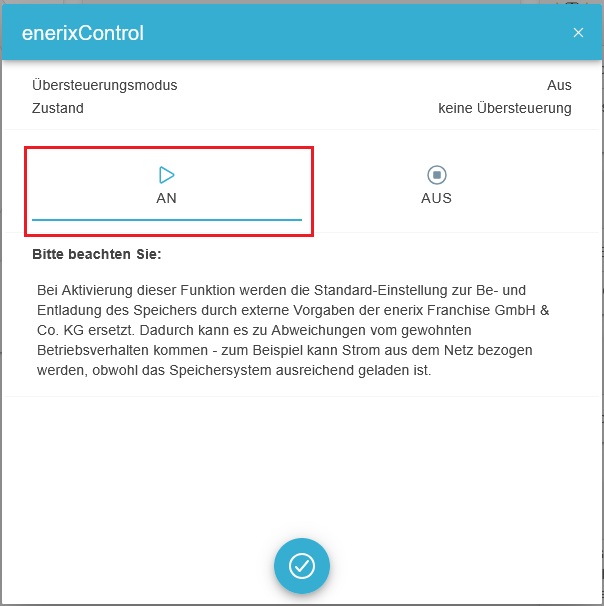

enerix aktiv
Figure 4. Activate FEMS App enerixControl — Step 2

Consumption

You can see the current discharging/charging power in the separate consumption widget in FEMS Online Monitoring.

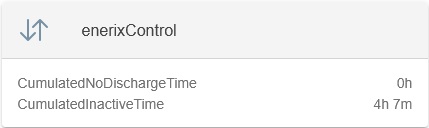

enerix verbrauchs widget
Figure 5. Consumption widget

2. Redeeming the license key

  • First, redeem the license key that you received with your invoice.

  • Start in FEMS Online Monitoring.

menu settings

  1. Click on the burger menu in the FEMS Online Monitoring at the top left.

  2. Click on "Settings".
app center

  1. Click on the blue arrow next to the FEMS App Center button.

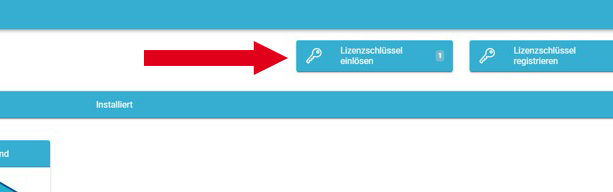

redeem key

  1. In the App Center, click on "Redeem license key" in the top right-hand corner.

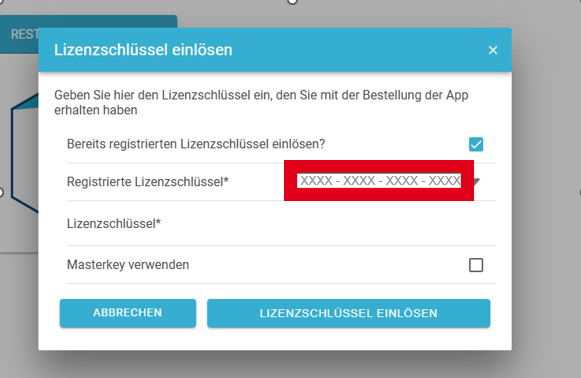

redeem key 2

  1. Enter the license key and confirm the entry with "Redeem license key".

3. Installing the app

  • The starting point for installing the app is the FEMS App Center.

  • Click on the FEMS App enerixControl tile under "Interfaces".

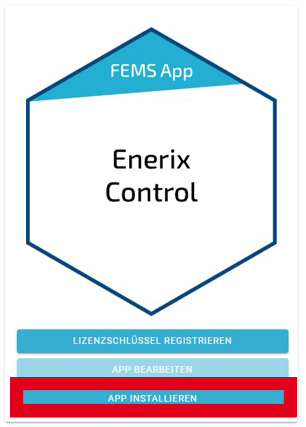

install app tile

  1. On this page, click on "Install app".
install window

  1. An installation field appears in which a URL must be entered.
    → This is generated in the enerixControl app.

3.1. Establish a t-shaped connector to enerixControl

  • Download the enerixControl app to your smartphone or tablet from the Apple App Store or Google Play Store.

  • Open the enerixControl app on your device.

  • Tap on "Register" at the bottom left.

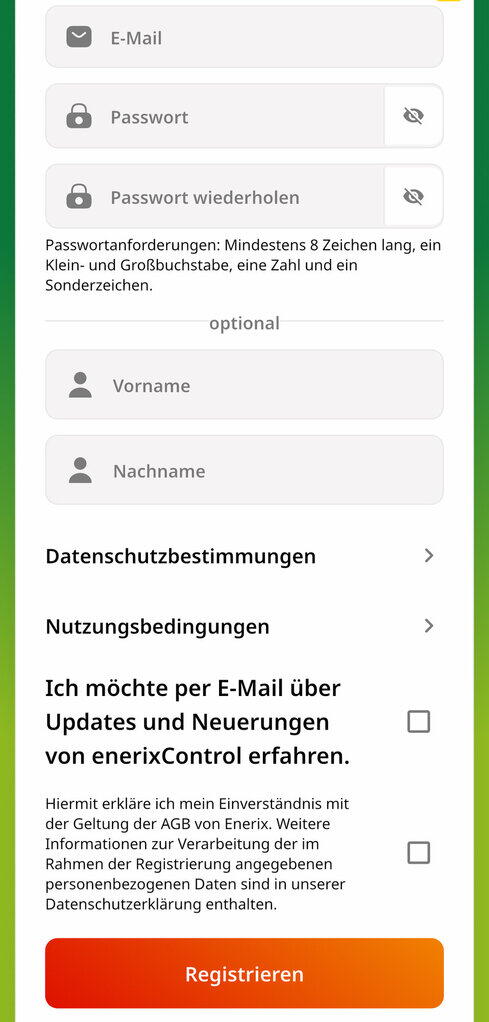

enerix registration

  1. Fill in the registration mask and then tap on "Register".

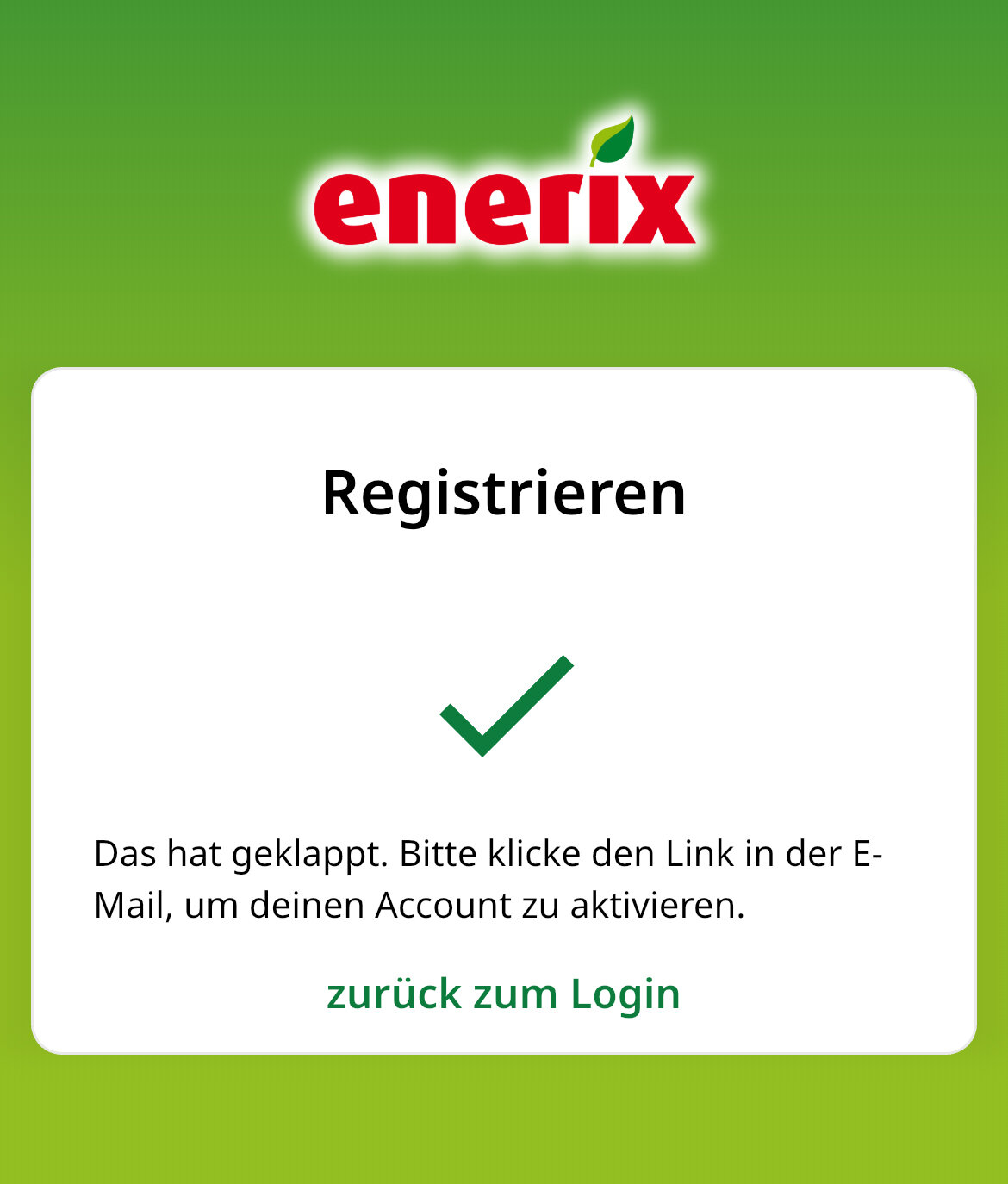

enerix registration success

  1. If your registration is successful, this window will appear and you will receive a confirmation by e-mail.

  2. Open the email on the same device and tap on the confirmation link.

  3. A confirmation screen will appear.

  4. Select "Back".
    → You will now see the login screen.

  5. Log in with your data

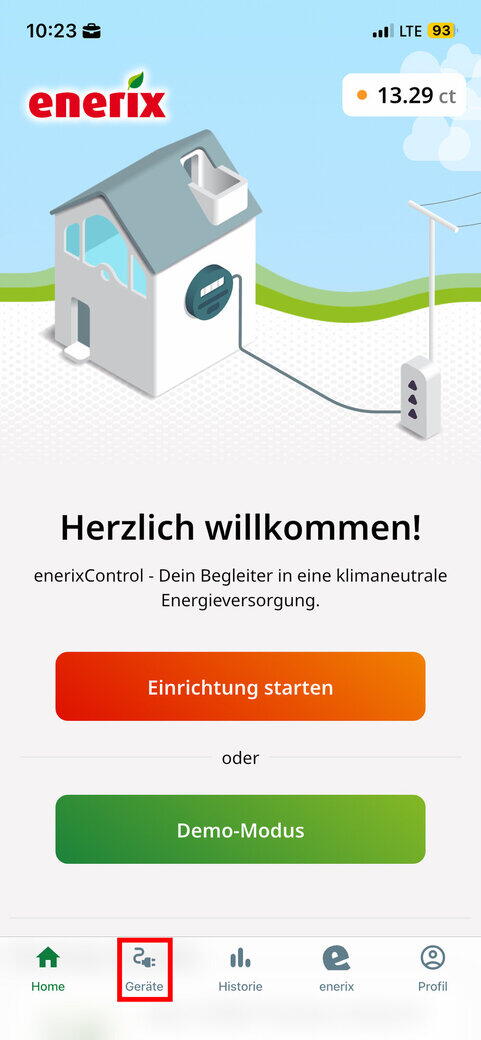

enerix setup devices

  1. In the following screen, tap on the "Devices" tab at the bottom.

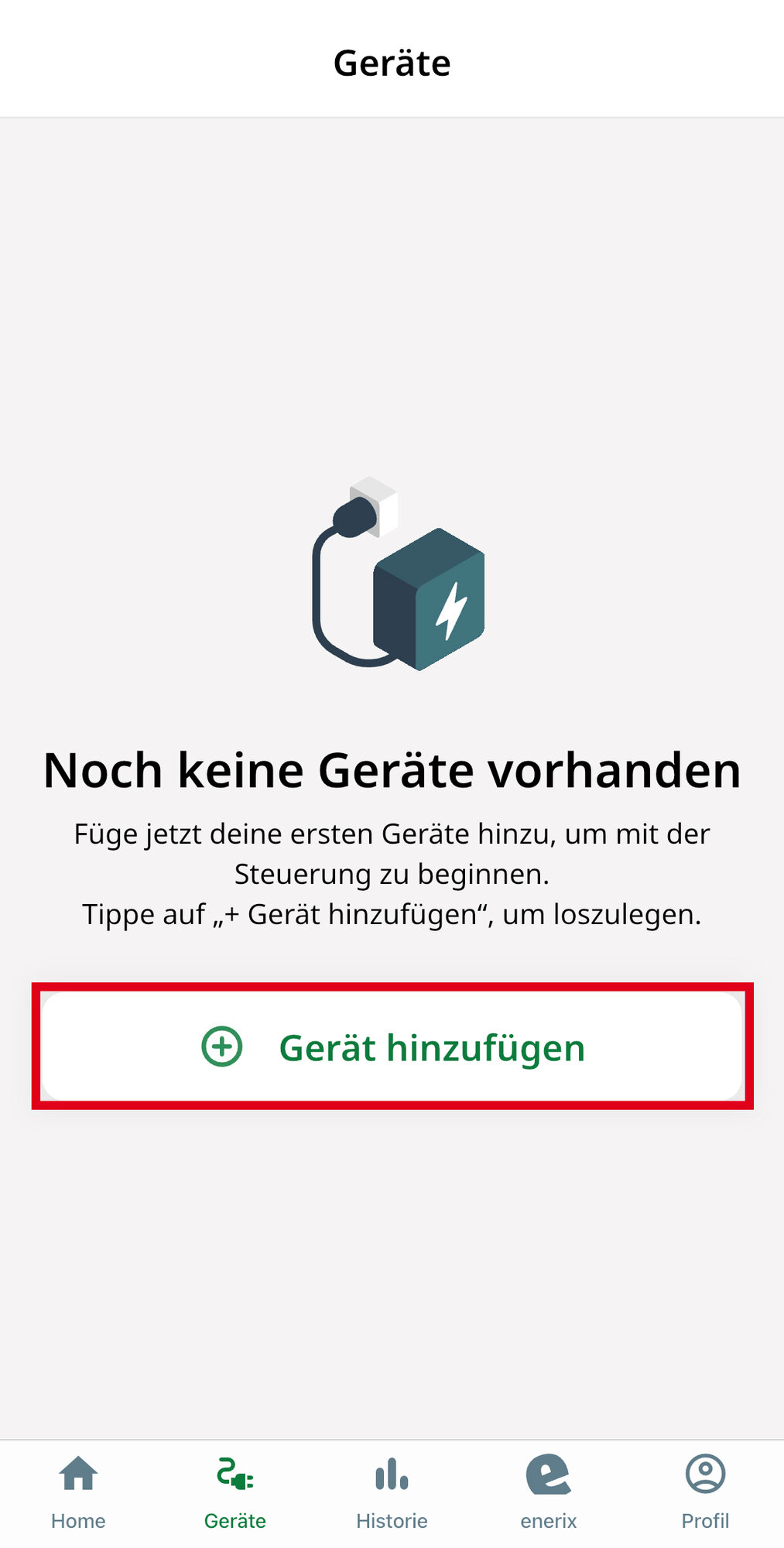

enerix add device

  1. Tap on "Add device".

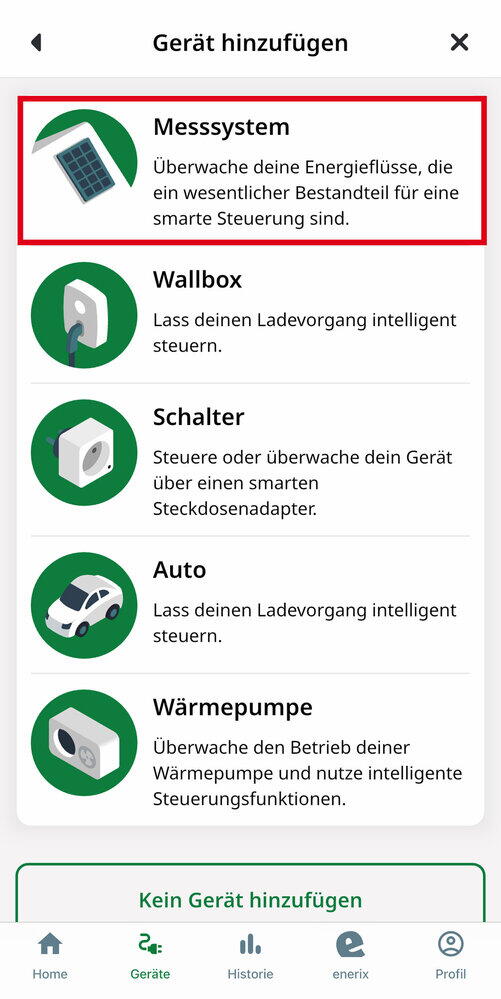

enerix measuring system 1

  1. Tap on "Measuring system".

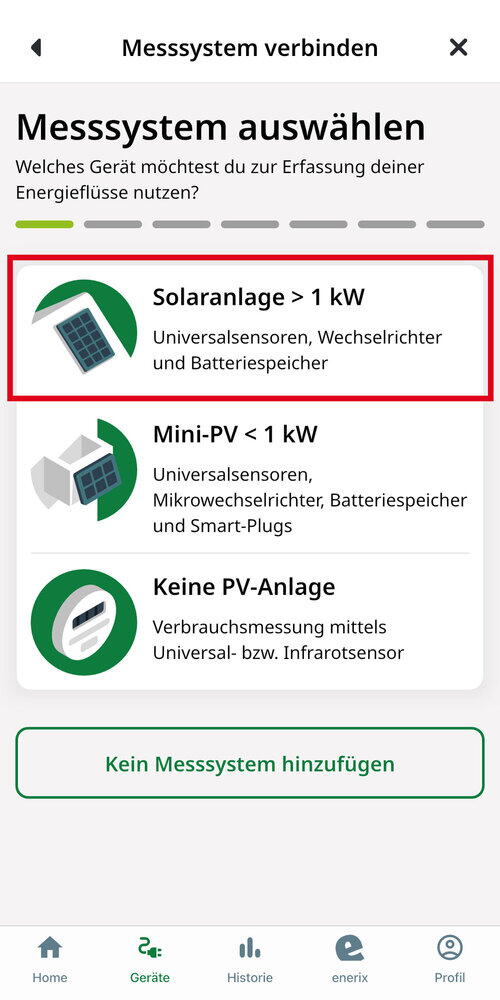

enerix measuring system 2

  1. Select the PV system  1 kW option.
enerix push api

  1. Select "FENECON" from the list.

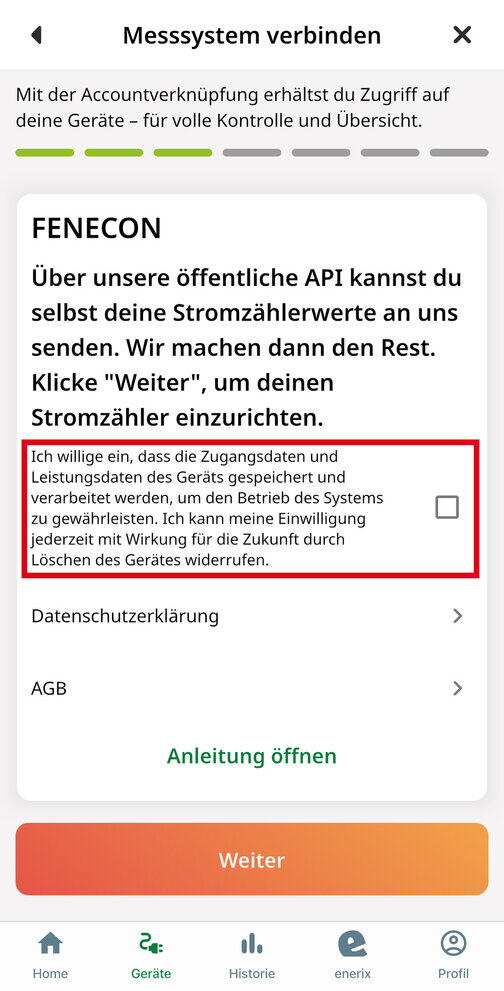

enerix connect measuring system 1

  1. The next step is to verify the account.

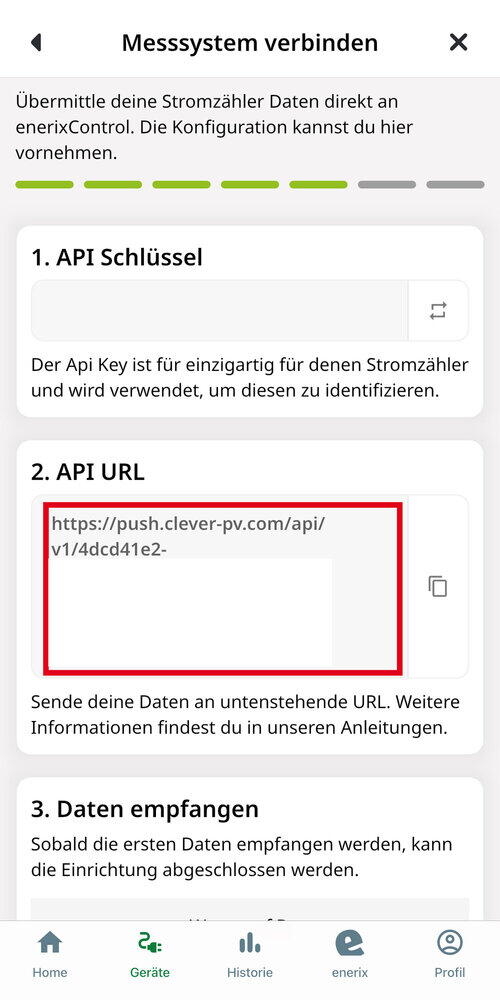

enerix connect measuring system 2

  1. The API URL is then displayed.

  2. Copy the displayed URL to your clipboard.
installation window 2

  1. Paste the URL in the FEMS installation field from section 3
data protection notice

  1. After confirming the data protection notice, the FEMS App enerixControl can be installed.

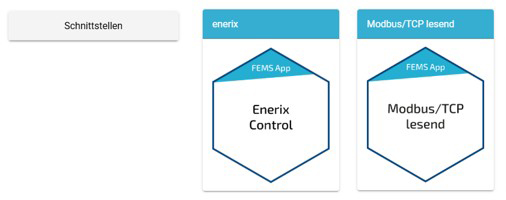

enerix control installed

  1. Once the installation is complete, FEMS App enerixControl can be found in the FEMS App Center under "Interfaces".

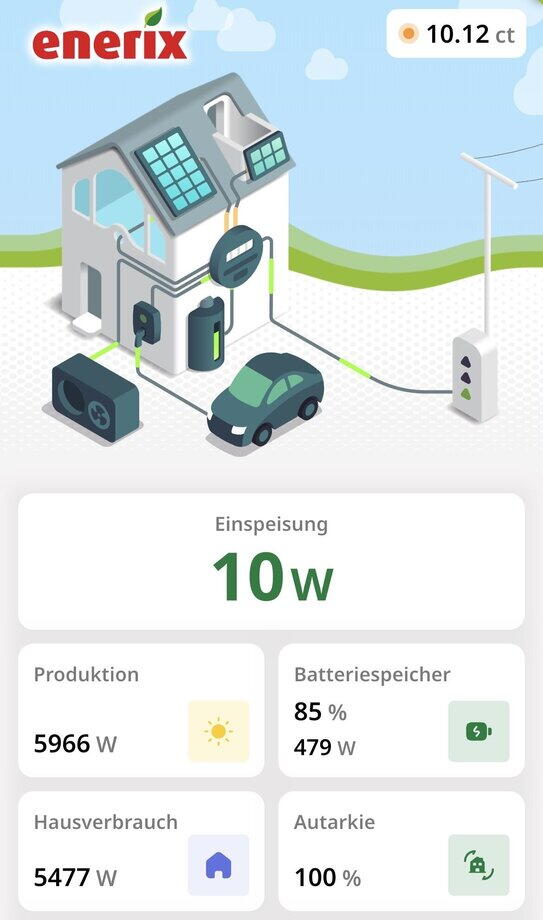

enerix final

  1. enerixControl can now be used in conjunction with FEMS.
