Configuration Manual — SolarEdge PV Inverter

1. Introduction

Manual 2026.9.1

These instructions are used to configure the following SolarEdge PV inverters:

SolarEdge
Download platform

  • All SolarEdge inverters with SetApp configuration

    • Single-phase inverters:

      • SE2200H

      • SE3000H

      • SE3500H

      • SE3680H

      • SE4000H

      • SE5000H

    • Three-phase inverters:

      • SE3K - SE10K

      • SE12.5K - SE33.5K

  • All SolarEdge inverters with an LCD and firmware version > 3.xxxx

You should always have the latest firmware installed.

2. Configuration via the SolarEdge Web Interface

Before integrating the inverter into FEMS, you should make sure that all necessary preparations have been made.

This includes configuring the inverter via the web interface.

Before configuring the PV inverter, make sure that it has been installed properly. Use the manufacturer’s installation instructions for this.

To integrate into the FEMS, please configure the device via the web interface. You can access this by calling up the IP address of the inverter in the browser. We recommend setting the assignment of the IP address to "Automatic" when commissioning the device.

To be able to access the web interface, your PC/notebook/smartphone must be in the same network as the inverter.

2.1. IP address

The connection between FEMS and the PV inverter is always established via the customer network. For this purpose, the IP address of the PV inverter is stored statically in FEMS. It is therefore necessary that the IP address of the PV inverter never changes.

  • Variant 1: Configure the SolarEdge PV inverter according to the instructions so that it is assigned a static IP address.

  • Option 2: Configure the inverter according to the instructions so that it is assigned a dynamic/automatic IP address. Additionally, configure the DHCP server in the customer’s network (e. g., AVM FritzBox ) so that the inverter is always assigned the same IP address.

2.2. Ping test

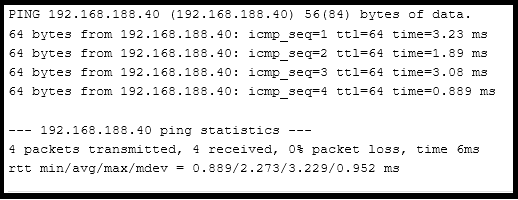

To test the correct configuration of the IP address, we recommend pinging the inverter in the local customer network.

In the example below, the IP address 192.168.188.40 was set for the inverter in the configuration.

KACO Konfiguration Ping
Image 1. Ping test

If the inverter cannot be reached via ping, check the settings under IP address.

2.3. Modbus/TCP

Modbus/TCP is deactivated by default and must therefore be activated first.

Make the following settings according to the instructions: Activate the Modbus/TCP interface:

Site Communication  Modbus TCP  Enable

A new port (1502) is then added to the screen. This port can be retained.

3. Integrating the PV inverter into FEMS

After you have configured the settings on the PV inverter, you can integrate it into FEMS.

Prepare to install the FEMS App by following these instructions:

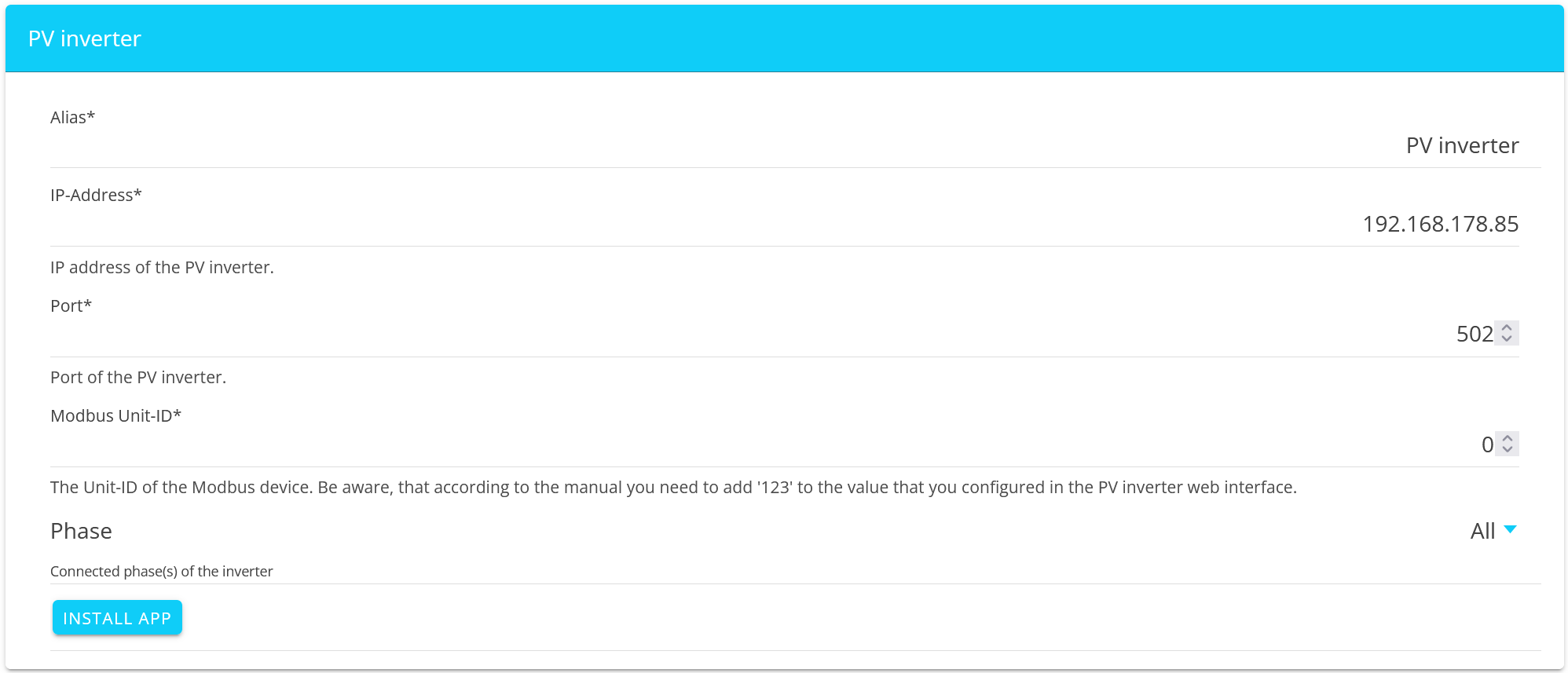

After entering the key, you will see the following screen:

FEMS — Installation — PV-Wechselrichter

Some of the input fields are pre-filled.

The alias is the name under which the PV inverter is displayed in FEMS. You can choose any name you like, but it should be meaningful.

Required fields are marked with an *.

  1. Check the IP address. You can find this either in the web interface of the respective PV inverter or in the list of devices registered on the router (e. g., Fritz!Box). If necessary, adjust the IP address so that they match.

  2. The port should be set to 502 in accordance with the standard.

  3. For the Modbus Unit ID, if a value has already been set in the PV inverter’s web interface, 123 must be added to that value. Enter this result as the Modbus Unit ID in FEMS.

  4. Finally, specify which phase(s) is/are connected to the PV inverter.

Complete the installation by selecting INSTALL APP.

The integration of the PV inverter into FEMS is now complete.

You will then find the integrated PV inverter as a submenu item under Production in the FENECON App.
