FENECON Home 20 & 30 Assembly and Operating Instructions

1. Information on these instructions

Personnel must have carefully read and understood these installation and service instructions before starting any work.

1.1. Manufacturer

FENECON GmbH
Gewerbepark 6
94547 Iggensbach
Germany

Phone: +49 (0) 9903 6280 0
Fax: +49 (0) 9903 6280 909
E-mail: service@fenecon.de
Internet: www.fenecon.de

1.2. Formal information on installation and service instructions

Reprinting, even in part, is only permitted with the permission of FENECON GmbH.

1.3. Version/revision

Table 1. Version/revision
Version/Revision	Änderung	Datum	Name
2023.10.1	Entwurf Ersterstellung	09.10.2023	FENECON TK
2023.11.1	Erweiterung um Kapitel 10-17	16.11.2023	FENECON TK
2023.12.1	Fehlerbehebung	05.12.2023	FENECON TK
2024.01.1	Fehlerbehebung/Erweiterung um Kapitel 11	10.01.2024	FENECON TK
2024.04.1	Fehlerbehebung/Erweiterung um Kapitel 11.2	19.04.2024	FENECON TK
2024.07.1	Anpassung Kapitel 10	15.07.2024	FENECON PM
2024.10.1	Anpassung Kapitel 11	02.10.2024	FENECON MR
2024.11.1	Anpassung Kapitel 9	05.11.2024	FENECON MR
2025.1.1	Integration Feuerwehrhinweis	27.01.2025	FENECON MR
2025.8.1	Integration Splitsockel	01.08.2025	FENECON TK/MR
2025.11.01	Integration Hochwasserhinweis	03.11.2025	FENECON PM (MR)
2026.06.01	Anwendung ISO-Warnhinweise	30.06.2026	FENECON PM (MR)

1.4. Darstellungskonventionen

1.4.1. Darstellungskonventionen — ISO-Warnhinweise

	DANGER
Zeigt eine unmittelbar gefährliche Situation an, die — wenn sie nicht vermieden wird — den Tod oder eine schwere Verletzung zur Folge hat.

	WARNING
Zeigt eine potenziell gefährliche Situation an, die — wenn sie nicht vermieden wird — den Tod oder schwere Verletzung zur Folge haben könnte.

	CAUTION
Zeigt eine potenziell gefährliche Situation an, die wenn sie nicht vermieden wird — eine geringfügige oder mäßige Verletzung zur Folge haben könnte.

	NOTICE
Zeigt eine potenziell gefährliche Situation an, die — wenn sie nicht vermieden wird — Sachschäden zur Folge haben könnte.

	SAFETY
Diese Sicherheitshinweise zeigen Einrichtungen an, die für die Rettung von Personen von Wichtigkeit sind.

1.4.2. Darstellungskonventionen — Ergänzende Informationen

WICHTIG

Zeigt eine wichtige Information an, die für die Verwendung des Produkts unerlässlich sind.

HINWEIS

Ergänzende Informationen und Tipps.

1.5. Aufbau von Warnhinweisen

Warnhinweise schützen bei Beachtung vor möglichen Personen- und Sachschäden und stufen durch das Signalwort die Größe der Gefahr ein.

Warnhinweise sind entsprechend der SAFE-Methode aufgebaut:

Table 2. SAFE-Methode
Signalwort	Bedeutung
S	Signalwort (GEFAHR, WARNUNG, VORSICHT oder ACHTUNG/HINWEIS)
A	Art und Quelle der Gefahr Beschreibung der Gefahr und der Ursache der Gefahr.
F	Folge Beschreibung der möglichen Folge für Mensch, Tier und Umwelt, die durch die Gefahr eintreten kann.
E	Entkommen Handlungsempfehlungen, wie Gefahren vermieden werden können.

	DANGER
GEFAHR Beschreibung von Art und Quelle der Gefahr und mögliche Folgen bei Missachtung. Maßnahmen zur Vermeidung/Verbote.

1.6. Terms and abbreviations

The following terms and abbreviations are used in the installation and service instructions:

Table 3. Terms and abbreviations
Term/abbreviation	Meaning
AC	Alternating Current
CHP	Combined heat and power plant (CHP)
BMS	Battery Management System
DC	Direct Current
EMS	Energy Management System
Energy meter	Electricity meter for the inverter at the grid connection point
FEMS	FENECON Energy Management System
Commissioning	Commissioning
MPPT	Maximum Power Point Tracking Finder for the maximum power point
GCP	grid connection point
PE	Protective conductor
PV	Photovoltaics
RTE	Round-Trip-Efficiency (RTE) System efficiency — ratio of discharged to charged energy quantity
SG-Ready	Smart-Grid-Ready — Preparation of the heat pump for external control
SoC	State of Charge State of charge The available capacity in a battery, expressed as a percentage of the nominal capacity.
SoH	State of Health — State of ageing
VDE	German Association for Electrical, Electronic & Information Technologies e. V.
Widget	Component of Online Monitoring

1.7. Scope of delivery

Table 4. Scope of delivery
Item	Component	Number	Comment
1	FENECON Home 20 & 30-Inverter	1	Depending on version, 20 or 30 kW
2	FENECON Home 20 & 30-EMS Box (incl. FENECON Energy Management System )	1
3	FENECON Home 20 & 30-Parallel Box	1	optional for 2nd FENECON Home 20 & 30 battery tower
4	FENECON Home 20 & 30-Extension Box	1	optional for 3rd & 4th FENECON Home 20 & 30 battery tower
5	FENECON Home 20 & 30-BMS Box	1	each FENECON Home 20 & 30-Battery Tower
6	FENECON Home 20 & 30-Battery module		depending on the capacity ordered
7	FENECON Home 20 & 30-Base	1	per FENECON Home 20 & 30-battery tower

Table 5. Documents
Component	Comment
Operating instructions FENECON Home 20 & 30	Instructions for the installer
Quick start guide FENECON Home 20 & 30	Quick start guide for the installer
Operating instructions FENECON Home 20 & 30	Instructions for the user/end customer
Brochure FENECON Home 20 & 30

1.8. Applicable documents

All documents listed in the appendix to these installation and service instructions must be observed. See 15.1 Applicable documents

1.9. Availability

The operator must keep these installation and service instructions or relevant parts of them within easy reach in the immediate vicinity of the product.

If the product is handed over to another person, the operator passes these installation and service instructions on to that person.

2. Safety

2.1. Intended use

The FENECON electrical energy storage system is used to store electrical energy in rechargeable lithium iron phosphate battery modules (charging) and to provide electrical energy (discharging). This charging and discharging process takes place via a connected inverter. The system must only be used in compliance with the permissible technical data (see section Technical data).

FENECON power storage systems consist of various modules. In particular, these include a BMS (battery management system), the FENECON Energy Management System (FEMS), battery modules and bases. All processes of the electricity storage system are monitored and controlled by the FEMS.

Any other use is not an intended use.

2.2. Reasonably foreseeable misuse

All applications that do not fall within the scope of the intended use are considered misuse.

Work on live parts is generally not permitted. Electrical work must only be carried out by qualified electricians.

The following safety rules must be observed for all work on electrical components:

Disconnect.
Secure against restarting.
Check that there is no voltage.
Earth and short-circuit.
Cover or shield neighboring live parts.

Non-compliance with the safety rules is considered a reasonably foreseeable misuse.

Other misuses include in particular:

improper transportation, installation or assembly at a location, trial operation or operation that could damage the system.
change in the specified technical characteristics, including the individual components.
change or deviation of the connected load.
functional or structural changes.
operating the product in a faulty or defective condition.
improper repairs.
operation without protective devices or with defective protective devices.
disregarding the information in the original installation and service instructions.
unauthorized access via the control unit or the network.
the installation of firmware updates that were not obtained via FENECON.
fire, open light and smoking in the vicinity of the storage system.
insufficient ventilation at the installation site.
unauthorized changes and actions to the electrical energy storage system.
use as mobile energy storage.
direct use in a PV system (integration via an AC-coupled grid is possible).

2.3. Area of application — Electromagnetic compatibility (EMC)

The low-voltage equipment is intended for use in the following areas of application:

General public (public)

Use in other areas of application is not in accordance with the intended use.

2.4. Qualification of the staff

Qualified personnel must be deployed for the intended use, installation and maintenance of the system. The area of responsibility, competence and supervision of the personnel must be precisely regulated by the operator.

2.4.1. Trained electricians

Trained electricians include persons who:

are able to carry out work on electrical systems due to their technical training, knowledge and experience as well as knowledge of the relevant standards and regulations.
have been commissioned and trained by the operator to carry out work on electrical systems and equipment of the battery system.
are familiar with how the battery system works.
recognize hazards and prevent them by taking appropriate protective measures.

2.4.2. Service staff

Service personnel includes the manufacturer’s personnel or specialist personnel instructed and authorized by FENECON GmbH, who must be requested by the operator to work on the system (e. g. assembly, repair, maintenance, work on the batteries, etc.).

2.5. General information on the FENECON system

The product must be positioned in such a way that sufficient room for movement can be guaranteed for service and maintenance personnel in every phase of the product’s life. The service life of the product depends on the service life and maintenance intervals carried out by qualified personnel. The service life is particularly influenced by preventive maintenance and servicing.

The battery modules must only be installed and the cable connections made by trained electricians.
The electrical energy storage system must only be used under the specified charging/discharging conditions (see section Technical data).
Keep the electrical energy storage system away from children and animals.
Do not connect the plug contacts of the BMS box in reverse.
Do not short-circuit battery modules.
Only use the battery modules as intended.
- Improper use can lead to overheating, explosion or fire of the battery modules.
Read the instructions for installation and operation to avoid damage due to incorrect operation.
The battery modules may have insufficient cell voltage after a long storage period. If this is the case, please contact the service department
Do not expose the battery modules to high voltages.
Place the battery modules on level surfaces.
Do not place any objects on the FENECON battery towers.

2.5.1. Environmental influences

Keep the electrical energy storage system away from water sources.
Do not immerse the electrical energy storage system in water, moisten it or touch it with wet hands.
Set up/store the electrical energy storage system in a cool place.
Do not heat the electrical energy storage system.
Do not expose the electrical energy storage system to open fire.
Do not set up or use the electrical energy storage system near open fires, heaters or high-temperature sources.
- The heat can cause insulation to melt and the safety ventilation to be damaged. This can lead to overheating, explosion or fire on the battery modules.
No soldering work must be carried out on the electrical energy storage system. Heat introduced during soldering can damage the insulator and the safety venting mechanism and lead to overheating, explosion or fire of the battery modules.

2.5.2. Mechanical influences

The battery modules must not be dismantled or modified. The battery modules contain a safety mechanism and a protective device, damage to which can lead to overheating, explosion or fire of the battery modules.
Do not step on the electrical energy storage system.
Do not attempt to crush or open battery modules.
Do not apply any mechanical force to the electrical energy storage system.
- The battery modules can be damaged and short circuits can occur, which can lead to overheating, explosion or fire of the battery modules.
Do not throw or drop parts of the power storage system.
- Do not use defective or dropped battery modules.
Do not use the electrical energy storage system if changes in color or mechanical damage are detected during assembly, charging, normal operation and/or storage.
If the protective devices are damaged, abnormal charging currents and voltages can cause a chemical reaction in the battery modules, which can lead to overheating, explosion or even fire in the battery modules.

2.5.3. Installation, operation and maintenance

Bei Instandhaltungs-, Wartungs- und Reinigungsarbeiten sicherstellen, dass das Produkt sicherheitsgerichtet abgeschaltet und gegen Wiedereinschalten gesichert ist.
Zudem müssen alle Anweisungen in dieser Betriebsanleitung befolgt werden.

Always observe the following safety instructions when installing, operating or maintaining the battery modules:

Installation/maintenance work and making cable connections must only be carried out by qualified personnel (trained electricians).
During maintenance work, stand on dry insulating objects and do not wear any metal objects (e.g. watches, rings and necklaces) during maintenance work/operation.
Use insulated tools and wear personal protective equipment.
Do not touch two charged contacts with a potential difference.
Measure the battery voltage with a multimeter and ensure that the output voltage is 0 V in off mode.
If an anomaly is detected, switch off the battery tower immediately.
Only continue the maintenance work after the causes of the anomaly have been eliminated.
The battery modules can cause electric shock and burns due to high short-circuit currents.
Do not touch the battery module connectors (+) and (-) directly with a wire or metal object (e. g. metal chain, hairpin). Excessive current can be generated in the event of a short circuit, which can lead to overheating, explosion or fire of the battery modules.

2.5.4. Fire protection

Do not expose the electrical energy storage system to direct sunlight.
Avoid contact with conductive objects (e. g. wires).
Keep heat and fire sources, flammable, explosive and chemical materials away from the electrical energy storage system.
Explosion hazard: Do not dispose of battery modules in a fire!

2.5.5. Storage

Area: Fireproof indoors/outdoors with suitable weather protection.
Air temperature: -20 °C to 40 °C.
Relative humidity: max. 50 % at +40 °C.
Do not store battery modules (lithium iron phosphate batteries) with flammable or toxic objects.
Store battery modules with safety defects separately from undamaged battery modules.

	NOTICE
Lagerung länger als 12 Monate Mögliche Folgen: Tiefentladung der Zellen/Defekt der Batterie. Externe Beladung der Batteriemodule auf Nennspannung — es muss eine Zwangsbeladung durchgeführt werden, welche über das FEMS gesteuert wird. Dies darf nur durch den Hersteller, oder durch ein vom Hersteller beauftragtes Unternehmen durchgeführt werden.

2.5.6. Charging

Den SoC des Batteriemoduls zum Versand unter 30 % halten und das Batteriemodul aufladen, wenn es länger als 12 Monate gelagert wurde.

2.6. Operating resources

2.6.1. Electrolyte solution of the battery modules

Electrolyte solution is used in the battery modules (lithium iron phosphate).
The electrolyte solution in the battery modules is a clear liquid and has a characteristic odor of organic solvents.
The electrolyte solution is flammable.
The electrolyte solution in the battery modules is corrosive.
Do not inhale the vapors.
If the electrolyte solution is swallowed, induce vomiting.
Leave the contaminated area immediately after inhaling the vapors.
Eye and skin contact with leaked electrolyte solution must be avoided.
Contact with electrolyte solution can cause severe burns to the skin and damage to the eyes.
- After skin contact: Immediately wash skin thoroughly with neutralizing soap and consult a doctor if skin irritation persists.
- After eye contact: Immediately flush eye(s) with running water for 15 minutes and seek medical advice.

Delayed treatment can cause serious damage to health.

2.7. Residual risk

	DANGER
Warnung vor elektrischer Spannung Arbeiten an stromführenden Komponenten können zum Tod oder zu schweren Verletzungen führen. Lassen Sie Arbeiten an elektrischen Ausrüstungen ausschließlich durch Elektrofachkräfte des Herstellers oder durch speziell beauftragte, unterwiesene Elektrofachkräfte und unter Beachtung der Sicherheitsvorschriften durchführen. Warten Sie nach dem Trennen der Energieversorgung mindestens 5 Minuten, bevor Sie Wartungstätigkeiten beginnen. Sehen Sie kundenseitig eine Netztrenneinrichtung für die elektrische Energieversorgung vor.

DANGER

Warnung vor elektrischer Spannung
Arbeiten an stromführenden Komponenten können zum Tod oder zu schweren Verletzungen führen.

Lassen Sie Arbeiten an elektrischen Ausrüstungen ausschließlich durch Elektrofachkräfte des Herstellers oder durch speziell beauftragte, unterwiesene Elektrofachkräfte und unter Beachtung der Sicherheitsvorschriften durchführen.
Warten Sie nach dem Trennen der Energieversorgung mindestens 5 Minuten, bevor Sie Wartungstätigkeiten beginnen.
Sehen Sie kundenseitig eine Netztrenneinrichtung für die elektrische Energieversorgung vor.

	WARNING
Fluchtwege freihalten Versperrte Türen, Notausgänge oder Zugänge können im Notfall zu schweren Verletzungen führen. Halten Sie alle Türen, Notausgänge und Bereiche um das Speichersystem herum frei. Verstellen Sie keine Fluchtwege.

	NOTICE
Unbekannte Störmeldungen Unbekannte Störungen und der Versuch der Behebung können zu Schäden am Produkt führen. Versuchen Sie nicht, unbekannte Störungen selbst zu beheben. Informieren Sie den Kundendienst, wenn eine Störung auftritt, die nicht in der Störungsliste aufgeführt ist.

	NOTICE
Bodenbeschaffenheit und Bausubstanz Der Boden muss so beschaffen sein, dass er das Gewicht der Batterietürme tragen kann. Wände müssen das Gewicht des Wechselrichters und weiterer Systemkomponenten tragen können. Das Gehäuse ist dicht gebaut und verhindert ein Austreten von Elektrolytlösung.

2.8. Behavior in emergency situations

Proceed as follows in emergency situations:

Disconnect the electrical energy storage system from the grid.
Leave the zone of danger immediately.
Secure the area.
Inform those responsible.
Call a doctor if necessary.

2.9. Pictograms

Pictograms on the system indicate dangers, prohibitions and instructions. Illegible or missing pictograms must be replaced by new ones.

Table 6. Pictograms
Piktogramm	Bedeutung	Beschreibung
	Warnung vor gefährlicher elektrischer Spannung	Piktogramm am Gehäuse, und Kennzeichnung von Komponenten, bei denen nicht klar zu erkennen ist, dass sie elektrische Betriebsmittel enthalten, die Anlass für ein Risiko durch elektrischen Schlag sein können.
	Allgemeines Warnzeichen
	Warnung vor Gefahren durch das Aufladen von Batterien	Piktogramm am Gehäuse und Kennzeichnung von Komponenten, bei denen nicht klar zu erkennen ist, dass sie elektrische Betriebsmittel enthalten, die Anlass für ein Risiko durch das Aufladen von Batterien sein können.
	Keine offene Flamme; Feuer, offene Zündquelle und Rauchen verboten	Piktogramm am Gehäuse und Kennzeichnung von Komponenten, bei denen nicht klar zu erkennen ist, dass sie elektrische Betriebsmittel enthalten, die Anlass für ein Risiko durch offene Flammen, Feuer, offene Zündquellen und Rauchen sein können.
	Schutzerdungskennzeichen
	Getrennte Sammlung von Elektro- und Elektronikgeräten
	Anleitung beachten
	Kopfschutz benutzen
	Fußschutz benutzen
	Handschutz benutzen
	CE-Kennzeichen
	Produkt ist recyclingfähig.

2.10. Operating materials/equipment

2.10.1. Electrolyte solution of the battery modules

Electrolyte solution is used in the battery modules (lithium iron phosphate).
The electrolyte solution in the battery modules is a clear liquid and has a characteristic odor of organic solvents.
The electrolyte solution is flammable.
The electrolyte solution in the battery modules is corrosive.
Contact with electrolyte solution can cause severe burns to the skin and damage to the eyes.
Do not inhale the vapors.
If the electrolyte solution is swallowed, induce vomiting.
Leave the contaminated area immediately after inhaling the vapors.
Eye and skin contact with leaked electrolyte solution must be avoided.
- After skin contact: Immediately wash skin thoroughly with neutralizing soap and consult a doctor if skin irritation persists.
- After eye contact: Immediately flush eye(s) with running water for 15 minutes and seek medical advice.

Delayed treatment can cause serious damage to health.

2.10.2. Electrical equipment

Work on electrical equipment must only be carried out by qualified electricians.
The five safety rules must be observed for all work on electrical components:
1. Disconnect.
2. Secure against restarting.
3. Check that there is no voltage.
4. Earth and short-circuit.
5. Cover or shield neighboring live parts.
Maintenance work must only be carried out by trained specialist personnel (service personnel).
Before starting work, carry out visual checks for insulation and housing damage.
The system must never be operated with faulty or non-operational electrical connections.
To avoid damage, lay supply lines without crushing and shearing points.
Only insulated tools must be used for maintenance on uninsulated conductors and terminals.
Control cabinets (e. g. inverter housing) must always be kept locked. Only authorized personnel with appropriate training and safety instructions (e. g. service personnel) should be allowed access.
The inspection and maintenance intervals for electrical components specified by the manufacturer must be observed.
To avoid damage, lay supply lines without crushing and shearing points
If the power supply is disconnected, specially marked external circuits may still be live!
Some equipment (e. g. inverters) with an electrical intermediate circuit may still carry dangerous residual voltages for a certain period of time after disconnection. Before starting work on these systems, check that they are de-energized.

2.11. Personal protective equipment

Depending on the work on the system, personal protective equipment must be worn:

Protective footwear
Protective gloves, cut-resistant if necessary
Protective eyewear
Protective headgear

2.12. Spare and wear parts

The use of spare and wear parts from third-party manufacturers can lead to risks. Only original parts or spare and wear parts approved by the manufacturer must be used. The instructions for spare parts must be observed. Further information can be found in the wiring diagram.

Further information must be requested from the manufacturer.

2.13. IT security

FENECON systems and their applications communicate and operate without an internet connection. The individual system components (inverters, batteries, etc.) are not directly connected to the internet or accessible from the Internet. Sensitive communications via the internet are processed exclusively via certificate-based TLS encryption.

Access to the programming levels is not barrier-free and is accessible at different levels depending on the qualifications of the operating personnel. Safety-relevant program changes require additional verification.

FENECON processes energy data of European customers exclusively on servers in Germany and these are subject to the data protection regulations applicable in this country.

The software used is checked using automated tools and processes established during development in order to keep it up to date and to rectify security-relevant vulnerabilities at short notice. Updates for FEMS are provided free of charge for life.

3. Technical data

3.1. General

Table 7. Technical data — General
designation		value/size
Installation/environmental conditions	IP classification	IP55
	Operating altitude above sea level	≤ 2,000 m
	Installation/operating temperature	-30 °C to +60 °C
	Relative humidity (operation/storage)	50 % non-condensing (up to 90 % permissible for short periods)
	Battery operating temperature	-10 °C to +50 °C
	Optimal operating temperature of the battery	15 °C to +30 °C
	Cooling	adaptive fan
	Loudness	< 45 dB
	Max. Grid connection	120 A
Certification/guideline	Overall system	CE
	Inverter	VDE 4105:2018-11 Gate generator type A 1.1
	Battery	UN38.3 VDE 2510-50

3.2. Technische Daten — Wechselrichter

Table 8. Technische Daten — Wechselrichter
Benennung		Wert/Größe
Wechselrichter Modell		FHI-20-DAH	FHI-30-DAH
DC-PV-Anschluss	Max. DC-Eingangsleistung	30 kW_p	45 kW_p
	MPP-Tracker	2	3
	Eingänge je MPPT	2 (MC4)	2 (MC4)
	Startspannung	200 V	200 V
	Max. DC Betriebsspannung in V	950 V	950 V
	Max. DC-Eingangsspannung in V	1000 V	1000 V
	MPPT-Spannungsbereich	200 V bis 850 V	200 V bis 850 V
	Nenn-Eingangsspannung in V	620 V	620 V
	Max. Eingangsstrom je MPPT	30 A	30 A
	Max. Kurzschlussstrom je MPPT	38 A	38 A
AC-Anschluss	Netzanschluss	400/380 V, 3L/N/PE, 50/60 Hz	400/380 V, 3L/N/PE, 50/60 Hz
	Max. Ausgangsstrom	29 A	43,3 A
	Max. Eingangsstrom	45 A	50 A
	Nominale Scheinleistungsausgabe	20.000 VA	29.900 VA
	Max. Scheinleistungsausgabe	22.000 VA	29.900 VA
	Max. Scheinleistung vom Stromnetz	30.000 VA	33.000 VA
	Cos(φ)	-0,8 bis +0,8	-0,8 bis +0,8
Notstrom	Notstromfähig	Ja	Ja
	Netzform	400/380 V, 3L/N/PE, 50/60 Hz	400/380 V, 3L/N/PE, 50/60 Hz
	Notstromversorgte Lasten (pro Phase)	20.000 VA (6.666 VA)*	29.900 VA (9.966 VA)*
	Schieflast	6.666 VA	9.999 VA
	Schwarzstart	Ja	Ja
	Solare Nachladung	Ja	Ja
Wirkungsgrad	Max. Wirkungsgrad	98,0 %	98,0 %
Wirkungsgrad	Europäischer Wirkungsgrad	97,5 %	97,5 %
Allgemein	Breite \| Tiefe \| Höhe	520 \| 220 \| 660 mm	520 \| 220 \| 660 mm
	Gewicht	48 kg	54 kg
	Topologie	nicht isoliert	nicht isoliert

*auch im Netzparallelbetrieb

3.2.1. Dimensions

The dimensions are given in mm.

Illustration 1. Wechselrichter — Abmessungen

3.3. Technische Daten — FEMS-Box

Table 9. Technische Daten — FEMS-Box
Benennung	Wert/Größe
Betriebsspannung DC	224 V bis 672 V
Max. Strom (Batterie)	50 A
Arbeitstemperatur	-10 °C bis 50 °C
Schutzart	IP55 (gesteckt)
Eingangsspannung	110 V bis 240 V / 0,7 A / 45 Hz bis 65 Hz
Breite \| Tiefe \| Höhe	506 \| 401 \| 157 mm
Gewicht	12 kg
Installation	stapelbar

3.3.1. Dimensions

The dimensions are given in mm.

Illustration 2. Abmessungen — FEMS-Box

3.3.2. FEMS-Box — Anschlussbelegung

Illustration 3. Anschlussbelegung — FEMS-Box

Table 10. Anschlussbelegung — FEMS-Box
Pos.	Beschreibung
1	Batterie Anschluss zum Wechselrichter (MC4-Evo stor)
2	Kommunikationsausgang für Parallelschaltung mehrerer Batterien
3	Anbindung Kundennetzwerk (LAN) RJ45 (Netzwerkkabel nicht im Lieferumfang enthalten)
4	Kommunikation Wechselrichter, Relaisausgänge; Digitale Eingänge (16-poliger Stecker), Analoger Ausgang
5	Spannungsversorgung FEMS-Box; Potentialfreie Kontakte (max. 10 A, gemessen) (10-poliger Stecker)
6	Erdungsanschluss
7	Für zukünftige Anwendungen (nicht belegt)

3.4. Technische Daten — FENECON-Parallel-Box (optional)

Table 11. Technische Daten — Parallel-Box
Benennung	Wert/Größe
Betriebsspannung DC	224 V bis 672 V
Max. Strom (Batterie)	50 A
Arbeitstemperatur	-10 °C ~ 50 °C
Schutzart	IP55 (gesteckt)
Breite \| Tiefe \| Höhe	506 mm \|401 mm \|157 mm
Gewicht	10 kg
Installation	stapelbar

3.4.1. Dimensions

The dimensions are given in mm.

Illustration 4. Abmessungen — Parallel-Box

3.4.2. Parallel-Box — Anschlussbelegung

Illustration 5. Anschlussbelegung — Parallel-Box

Table 12. Anschlussbelegung — Parallel-Box
Pos.	Beschreibung
1	Batterie Anschluss zum Wechselrichter (MC4-Evo stor)
2	Kommunikationsausgang für Parallelschaltung mehrerer Batterietürme
3	Kommunikationseingang für Parallelschaltung mehrerer Batterietürme
4	Batterie Anschluss für weiterer Batterietürme (MC4-Evo stor)
5	Erdungsanschluss

3.5. Technische Daten — Extension-Box

Table 13. Extension-Box — Technische Daten
Benennung	Wert/Größe
Betriebsspannung DC	224 V bis 672 V
Max. Strom (Batterie)	50 A
Arbeitstemperatur	-10 °C bis 50 °C
Schutzart	IP55 (gesteckt)
Breite \| Tiefe \| Höhe	506 \| 401 \| 157 mm
Gewicht	9 kg
Installation	stapelbar

3.5.1. Dimensions

The dimensions are given in mm.

Illustration 6. Abmessungen — Extension-Box

3.5.2. Extension-Box — Anschlussbelegung

Illustration 7. Anschlussbelegung — Extension-Box

Table 14. Anschlussbelegung — Extension-Box
Pos.	Beschreibung
1	Batterie-Anschluss zur FEMS-Box parallel (MC4-Evo stor)
2	Kommunikationsausgang für Parallelschaltung mehrerer Batterietürme
3	Kommunikationseingang für Parallelschaltung mehrerer Batterietürme
4	Erdungsanschluss

3.6. Technische Daten — BMS-Box

Table 15. Technische Daten — BMS-Box
Benennung	Wert/Größe
Maximaler Betriebsspannungsbereich	224 V bis 672 V
Maximaler Ausgangs-/Eingangsstrom	50 A
Optimale Betriebstemperatur	15 bis 30 °C
Arbeitstemperaturbereich	-20 bis 55 °C
Schutzart	IP55 (gesteckt)
Breite (inkl. Seitenblende) \| Tiefe \| Höhe	506 \| 401 \| 143 mm
Gewicht	13 kg
Installation	stapelbar/Wandmontage

3.6.1. Dimensions

The dimensions are given in mm.

Illustration 8. Abmessungen — BMS-Box

3.7. Technical data — FENECON battery module

Table 16. Technical data — Battery module
Designation	Value/dimension
Usable capacity	62.4 Ah/2.80 kWh
Rated voltage	44.8 V
Output voltage range	39.2 V to 50.4 V
Battery operating temperature range	-20 °C to +55 °C
Storage temperature range (over 7 days)	-30 °C to +60 °C
Storage temperature range (over 30 days)	-20 °C to +55 °C
Storage temperature range (cumulative up to 270 days)	-10 °C to +45 °C
Protection specification	IP55 (plugged in)
Weight	30 kg
Installation	stackable
Parallel connection	4 battery towers in parallel
Cooling	natural cooling
Shipping capacity	< 30 % SoC
Module safety certification	VDE 2510/IEC62619
UN transport test standard	UN38.3
Relative humidity during storage	5 % to 95 %

	NOTICE
Storage longer than 12 months Possible consequences: Deep discharge of the cells, defect of the battery module. Externe Beladung der Batteriemodule auf Nennspannung. Dies darf nur durch den Hersteller oder ein vom Hersteller beauftragtes Unternehmen durchgeführt werden.

3.7.1. Dimensions

The dimensions are given in mm.

Illustration 9. Dimensions — Battery module

3.7.2. Electrical parameters of the battery modules

For battery modules 5 to 7

Table 17. Electrical parameters — No. of battery modules 5S to 7S (5 to 7 modules in series)
Parameter	Value/dimension
No. of modules	5S	6S	7S
Nominal capacity in kWh	14.3	17.2	20.0
Usable capacity in kWh	14.0	16.8	19.6
Width incl. side panel in mm	506
Depth in mm	401
Height in mm	1120	1263	1406
Weight in kg	187	217	247
Nominal voltage in V	224.0	268.8	313.6
Output voltage range in V	196 ~ 252	235.2 ~ 302.4	274.4 ~ 352.8
Maximum continuous charging/discharging power in kW
Inverter with 20 kW	11.20	13.44	15.68
Inverter with 29.9 kW	11.20	13.44	15.68

For battery modules 8 to 11

Table 18. Electrical parameters — Number of battery modules 8S to 11S (8 to 11 modules in series)
Parameter	Value/dimension
Modules	8S	9S	10S	11S
Nominal capacity in kWh	22.9	25.8	28.7	31.5
Usable capacity in kWh	22.4	25.2	28.0	30.8
Width incl. side panel in mm	506
Depth in mm	401
Height in mm	1549	1692	1835	1978
Weight in kg	277	307	337	367
Rated voltage in V	358.4	403.2	448.0	492.8
Output voltage range in V	313.6 ~ 403.2	352.8 ~ 453.6	392.0 ~ 504.0	431.2 ~ 554.4
Maximum continuous charging/discharging power in kW
Inverter with 20 kW	17.92	20.00	20.00	20.00
Inverter with 29.9 kW	17.92	20.16	22.40	24.64

For battery modules 12 to 15

Table 19. Electrical parameters — No. of battery modules 12S to 15S (12 to 15 modules in series)
Parameter	Value/dimension
Modules	12S	13S	14S	15S
Nominal capacity in kWh	34.4	37.3	40.1	43.0
Usable capacity in kWh	33.6	36.4	39.2	42.0
Width incl. side panel in mm	506
Depth in mm	401
Height in mm	2121	2264	2407	2550
Weight in kg	397	427	457	487
Rated voltage in V	537.6	582.4	627.2	672.0
Output voltage range in V	470.4 ~ 604.8	509.6 ~ 655.2	548.8 ~ 705.6	588.0 ~ 756.0
Maximum continuous charging/discharging power in kW
Inverter with 20 kW	20.00	20.00	20.00	20.00
Inverter with 29.9 kW	26.88	29.12	30.00	30.00

The specified capacity values refer to one battery tower and are rounded to one decimal place.

3.8. Technical data — Base

Table 20. Technical data — Base
Designation	Value/dimension
Width (incl. side panel) \| Depth \| Height	506 \| 401 \| 84 mm
Weight	6 kg
Protection specification	IP55 (plugged in)
Installation	stackable

3.8.1. Dimensions — Base

The dimensions are given in mm.

Illustration 10. Dimensions — Base

3.9. Technical data — Split base (optional)

Table 21. Technical data — Split base
Designation	Value/dimension
Width (incl. side panel) \| Depth \| Height	1312 \| 401 \| 84 mm
Weight	11 kg
Protection specification	IP55 (plugged in)
Installation	stackable

3.9.1. Dimensions — Split base

The dimensions are given in mm.

Illustration 11. Dimensions — Split base

3.10. Technical data — Top box (with option: split base)

Table 22. Technical data — Top box
Description	Value/dimension
Width (incl. side panel) \| Depth \| Height	506 \| 401 \| 157 mm
Weight	9 kg
Protection specification	IP55 (plugged in)
Installation	stackable

3.10.1. Dimensions — Top box

The dimensions are given in mm.

Illustration 12. Dimensions — Top box

4. General description

The FENECON Home 20 & 30 is a Back-up power capability Battery energy storage system that can build its own household power grid. Lithium iron phosphate batteries (LiFePO4) are used in this modular system for storing electrical energy.

4.1. System configuration — General overview

Illustration 13. System — schematic diagram with optional components (shown without protective device)

4.2. System structure: Variants with emergency power

4.2.1. Standard setup with back-up power

Illustration 14. Standard setup with emergency power (shown without protective device)

Table 23. Standard setup with back-up power
Item	Description
1	Grid
2	2 bi-directional meter
3	Smart meter
4	Inverter
5	PV system
6	FENECON Home 20 & 30
7	Consumption (emergency power supply)
8	Consumption (not supplied with emergency power)

Within the emergency power function, the Inverter acts as its own grid creator and sets up its own 3-phase system for the separate emergency power branch (see Technical data). Compared to the public grid system, the Grid shape of the emergency power mode has a lower "buffer effect" with regard to load peaks, starting currents, DC components and strongly fluctuating Loads. Due to the limited power of the Inverter, such loads are only possible within certain limits.

4.2.2. System structure with additional PV producer

Illustration 15. System structure with additional PV producer (shown without protective device)

Table 24. System structure with additional PV producer
Item	Description
1	Grid
2	2 bi-directional meter
3	Smart meter
4	3-phase sensor or with PV inverter app
5	PV Inverter
6	Additional PV system
7	FENECON Home 20 & 30
8	PV system
9	Inverter
10	Consumption (not supplied with emergency power)
11	Consumption (emergency power supply)

4.2.3. AC system diagram

Illustration 16. AC system diagram (shown without protective device)

Table 25. AC system diagram
Item	Description
1	Grid
2	2 bi-directional meter
3	Smart meter
4	3-phase sensor or with PV inverter app
5	PV Inverter
6	PV system
7	FENECON Home 20 & 30
8	Inverter
9	Consumption (emergency power supply)
10	Consumption (not supplied with emergency power)

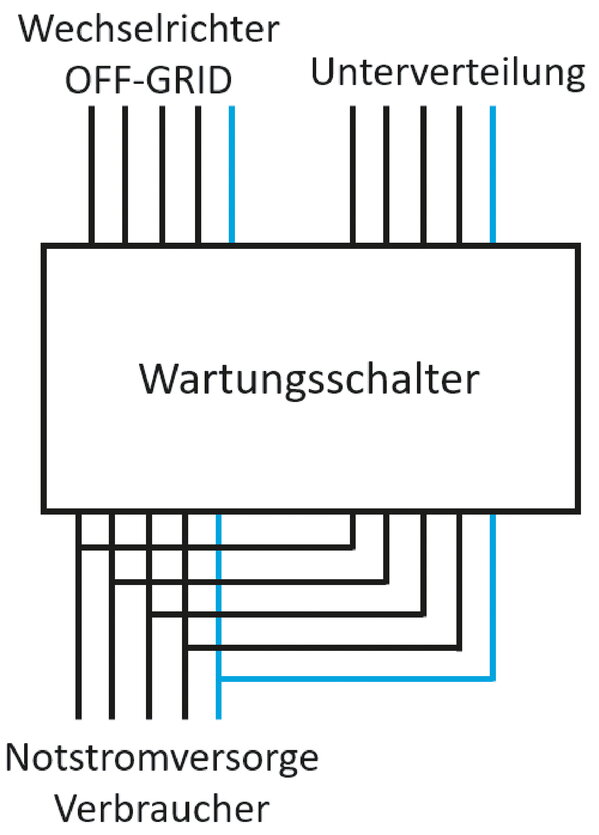

4.2.4. System with manual emergency power changeover

Illustration 17. System with manual emergency power switchover (shown without protective device)

Table 26. System with manual emergency power changeover
Item	Description
1	Grid
2	2 bi-directional meter
3	Smart meter
4	Inverter
5	PV system
6	FENECON Home 20 & 30
7	Manual Back-up Power switch
8	Consumption (emergency power supply)

4.2.5. Required components

Depending on the system configuration, a maximum of the following components is required. When connecting up to four battery towers in parallel, ensure that the same number of battery modules is installed in each battery tower.

Table 27. System configuration — Required components
Number of battery towers	Number of battery modules max.	BMS box (per tower)	EMS box	Parallel box	Extension box
1	15	1	1	-	-
2	30	1	1	1	-
3	45	1	1	1	1
4	60	1	1	1	2

Illustration 18. Structure FENECON Home 20 & 30 storage system with four battery towers

5. Assembly preparation

5.1. Scope of delivery

5.1.1. FENECON Home 20 & 30 inverter

Table 28. Scope of delivery — FENECON Home 20 & 30-Inverter
Amount	Description	Item no.
1	FENECON Home 20 & 30-Inverter	FEH030 and FEH031
1	Wall mount	FEH057
1	Meter with transformer (transformers are already mounted on the meter)	FH0055
1	Cover — communication connection	FEH060
4(6)	MC4 plug	Part of complete set FEH055
4(6)	MC4 socket	Part of complete set FEH055
1	Energy meter cable
1	FEMS cable	Part of complete set FEH055
20	Nuts for AC connection	Part of complete set FEH055
1	Insulator plate for AC connections	Part of complete set FEH055
10	Cable lugs — AC cable	Part of complete set FEH055
1	Pin terminal, 3-pin	Part of complete set FEH055.^
1	Pin terminal, 6-pin	Part of complete set FEH055
1	Pin terminal, 7-pin	Part of complete set FEH055
1	Cover — AC connection	FEH056
2	Bolt for earthing and fixing to wall bracket	Part of complete set FEH055

5.1.2. FENECON Home 20 & 30-EMS-Box

Table 29. Scope of delivery — FENECON Home 20 & 30-EMS-Box
Amount	Description	Item no.
1	FENECON Home 20 & 30-EMS box	FEH013
2	side panel	Part of complete set FEH050
2	Harting housing with cable gland (13-21 mm), multi-hole seal (4 x 8 mm) Harting housing with cable gland (19-25 mm), multi-hole seal (2 x 10 & 1 x 8 mm)	Part of complete set FEH050
1	Harting socket, 10-pin	Part of complete set FEH050
1	Harting insert 16-pin (assembled)	Part of complete set FEH050
1	Jumper plug	Part of complete set FEH050
2	Network connector housing	Part of complete set FEH050
5	Filler plug, 8 mm	Part of complete set FEH050
2	Filler plug, 10 mm	Part of complete set FEH050
1	Battery cable set, 3 m	Part of complete set FEH050
1	Installation and service instructions (for the installer)
1	Quick start guide (for the installer)
1	Operating instructions (for the end customer)

5.1.3. FENECON Home 20 & 30 Parallel box (optional)

Table 30. Scope of delivery — Parallel box
Amount	Description	Item no.
1	FENECON Home 20 & 30 Parallel box	FEH011
2	side panel	Part of complete set FEH059
2	Two DC cables per set, 2 m	Part of complete set FEH059
1	Communication cable — parallel connection, 2 m	Part of complete set FEH059

5.1.4. FENECON Home 20 & 30 extension box (optional)

Table 31. Scope of delivery — Extension box
Amount	Description	Item no.
1	FENECON Home 20 & 30-Extension box	FEH012
2	Side panel	Part of complete set FEH059
2	two DC cables per set, 2 m	Part of complete set FEH059
1	communication cable, 2 m	Part of complete set FEH059

5.1.5. FENECON Home 20 & 30-BMS-Box/Base

Table 32. Scope of delivery — BMS box/base
Amount	Description	Item no.
1	FENECON Home 20 & 30-BMS box	FEH000
1	Base
2	Side panel (FENECON Home 20 & 30-BMS box)	FEH051
2	Side panel (base)
4	Wall mounting — Mounting bracket	Part of connection set FEH052
4	Wall mounting — Mounting bracket (wall part)	Part of connection set FEH052
8	Bolt M4 x 10	Part of connection set FEH052
2	Bolt for wall mounting M6 x 12	Part of connection set FEH052

5.1.6. BMS box/split base (optional)

Table 33. Scope of delivery — BMS box/split base (optional)
Image	Amount	Description
	1	BMS box for split base
	1	Top box for split base
	1	Split base
	4	Side panel (BMS box)
	2	Side panel (split base)
	4	Wall mounting — Mounting bracket
	4	Wall mounting — Mounting bracket (wall part)
	4	Bolts, M4 x 10
	2	Bolts for wall mounting, M6 x 12

5.1.7. FENECON Home 20 & 30 battery module

Table 34. Scope of delivery — Battery module
Amount	Description	Item no.
1	Battery module	FEH020
2	Side panel	FEH051
2	Fixing plates	Part of connection set FEH053
2	Bolt M4 x 10	Part of connection set FEH053

5.2. Tools required

The following tools are required for assembly of the system components:

Table 35. Tools required
Image	Description	Image	Description
	Pencil		Spirit level
	Impact drill or cordless screwdriver		Screwdriver set
	Meter stick		Side cutter
	Allen key, 3 mm		Set of flat spanners
	Crimping tool		Multimeter
	Pliers for cable glands		Protective eyewear
	Safety footwear		Dust mask
	Rubber mallet		Vacuum cleaner
	Wire stripper		Protective gloves
	Torque wrench		Stripping knife

6. Assembly

	WARNING
Verletzungsgefahr während der Montage des Systems Fehlerhaftes Arbeiten während der Montage kann zu erheblichen Funktionsstörungen und Verletzungen führen. Bringen Sie geeignete Schutzabdeckungen an. Halten Sie alle örtlichen Unfallverhütungsvorschriften ein.

CAUTION

Gefahr durch fehlerhafte Montage des Systems
Beschädigungen des Systems während der Montage können zu erheblichen Funktionsstörungen und Verletzungen führen.

Beschädigen Sie keine Kabel und achten Sie darauf, dass niemand auf die Kabel oder Stecker tritt.
If cables are fed in from the front, the customer must use suitable covers to protect the cables against the risk of tripping.
When drilling holes, avoid the water pipes and cables laid in the wall.
Vergewissern Sie sich, dass der Wechselrichter fest installiert und gegen Herunterfallen gesichert ist.
Stellen Sie sicher, dass alle Geräte im selben Netzwerk sowie die Batteriemodule in den bestehenden Überspannungsschutz integriert sind.
Das DC-Schaltschloss in geeigneter Größe sollte vom Kunden vorbereitet werden. Der Durchmesser des Schlosses beträgt 5 mm. Das Schloss kann möglicherweise nicht installiert werden, wenn der Bügeldurchmesser zu groß ist.
- Beachten Sie die Zulieferdokumentation des Wechselrichters.

	NOTICE
Arbeitsschutz Einatmen von Stäuben und Augenverletzungen durch Staubpartikel beim Bohren von Löchern. Tragen Sie beim Bohren eine Schutzbrille und eine Staubmaske, um zu verhindern, dass entstehender Staub eingeatmet wird oder in die Augen gelangt.

The following components must be installed:

Inverter
Battery tower with Base, battery modules, BMS-Box, and FENECON Home 20 & 30-EMS-Box
Optional:
- Battery tower with base, battery modules, BMS box and Parallel box
Optional:
- Battery tower with base, battery modules, BMS box and Extension box

Before installation, carefully check whether the packaging and products are damaged and whether all accessories listed in the Scope of delivery are included. If a part is missing or damaged, contact the manufacturer/dealer.

6.1. Assembly — Inverter

6.1.1. Warnhinweise und Sicherheitshinweise

DANGER

Elektrischer Schlag durch spannungsführende Teile
Tod oder schwere Verletzungen des Körpers und der Gliedmaßen durch elektrischen Schlag bei Berührung spannungsführender DC-Kabel, die am Speichersystem angeschlossen sind.

Schalten Sie vor Beginn der Arbeiten den Wechselrichter, die BMS-Box und die Batteriemodule spannungsfrei und sichern Sie sie gegen Wiedereinschalten.
Warten Sie mit dem Beginn der Arbeiten am Wechselrichter mindestens 5 Minuten nach dem Abschalten.
Beachten Sie die Sicherheitshinweise der FENECON GmbH im Abschnitt [Sicherheit].
Berühren Sie keine freiliegenden spannungsführenden Teile oder Kabel.
Ziehen Sie die Klemmleiste mit angeschlossenen DC-Leitern nicht unter Last aus dem Steckplatz heraus.
Tragen Sie bei allen Arbeiten geeignete persönliche Schutzausrüstung.

DANGER

Elektrischer Schlag bei fehlendem Überspannungsschutz
Tod oder schwere Verletzungen des Körpers und der Gliedmaßen durch elektrischen Schlag aufgrund über die Netzwerkkabel oder andere Datenkabel ins Gebäude und an andere angeschlossene Geräte im selben Netzwerk weitergeleitete Überspannung (z. B. Blitzschlag) durch fehlenden Überspannungsschutz.

Stellen Sie sicher, dass alle Geräte im selben Netzwerk sowie die Batteriemodule in den bestehenden Überspannungsschutz integriert sind.
Stellen Sie bei der Verlegung von Netzwerkkabeln oder anderen Datenkabeln im Außenbereich sicher, dass beim Übergang der Kabel vom Wechselrichter oder des Batterieturms (der Batteriemodule) aus dem Außenbereich in ein Gebäude ein geeigneter Überspannungsschutz vorhanden ist.

DANGER

Feuer und Explosion
Tod oder schwere Verletzungen des Körpers und der Gliedmaßen durch Brand oder Explosion, im Fehlerfall kann im Inneren des Wechselrichters ein zündfähiges Gasgemisch entstehen. Durch Schalthandlungen kann in diesem Zustand im Inneren des Produkts ein Brand entstehen oder eine Explosion ausgelöst werden.

Führen Sie im Fehlerfall keine direkten Handlungen am Speichersystem durch.
Stellen Sie sicher, dass Unbefugte keinen Zutritt zum Speichersystem haben.
Trennen Sie die Batteriemodule über die DC-Sicherung am Batterieturm vom Wechselrichter.
Schalten Sie den AC-Leitungsschutzschalter aus oder lassen Sie ihn, wenn dieser bereits ausgelöst hat, ausgeschaltet und sichern Sie ihn gegen Wiedereinschalten.
Führen Sie Arbeiten am Wechselrichter (z. B. Fehlersuche, Reparaturarbeiten) nur mit persönlicher Schutzausrüstung für den Umgang mit Gefahrstoffen (z. B. Schutzhandschuhe, Augen- und Gesichtsschutz und Atemschutz) durch.

	DANGER
Lichtbögen aufgrund von Kurzschluss-Strömen Tod oder schwere Verletzungen des Körpers und der Gliedmaßen durch Verbrennungen durch Hitzeentwicklung und Lichtbögen aufgrund von Kurzschluss-Strömen der Batteriemodule. Schalten Sie vor allen Arbeiten an den Batteriemodulen die Batteriemodule spannungsfrei. Beachten Sie alle Sicherheitshinweise der FENECON GmbH.

DANGER

Zerstörung eines Messgeräts durch Überspannung
Tod oder schwere Verletzungen des Körpers und der Gliedmaßen durch elektrischen Schlag beim Berühren eines unter Spannung stehenden Messgerätegehäuses: Eine Überspannung kann ein Messgerät beschädigen und zum Anliegen einer Spannung am Gehäuse des Messgeräts führen.

Setzen Sie nur Messgeräte mit einem DC-Eingangsspannungsbereich bis mindestens 1000 V oder höher ein.

	WARNING
Gewicht des Wechselrichters Verletzungen des Körpers und der Gliedmaßen durch Quetschen bei Herunterfallen während Transport oder Montage des Wechselrichters. Gehen Sie beim Transport und Heben des Wechselrichters vorsichtig vor. Beachten Sie das Gewicht des Wechselrichters und dessen Schwerpunkt. Tragen Sie bei allen Arbeiten am Wechselrichter geeignete persönliche Schutzausrüstung.

CAUTION

Giftige Substanzen, Gase und Stäube
Durch Beschädigungen an elektronischen Bauteilen können giftige Substanzen, Gase und Stäube im Inneren des Wechselrichters entstehen. Das Berühren giftiger Substanzen sowie das Einatmen giftiger Gase und Stäube kann zu Hautreizungen, Verätzungen, Atembeschwerden und Übelkeit führen.

Führen Sie Arbeiten am Wechselrichter (z. B. Fehlersuche, Reparaturarbeiten) nur mit persönlicher Schutzausrüstung für den Umgang mit Gefahrstoffen (z. B. Schutzhandschuhe, Augen- und Gesichtsschutz und Atemschutz) durch.
Stellen Sie sicher, dass Unbefugte keinen Zutritt zum Wechselrichter haben.

CAUTION

Heiße Oberflächen
Verletzungen des Körpers und der Gliedmaßen durch Verbrennen an heißen Oberflächen: Die Oberflächen des Wechselrichters können sich stark erwärmen.

Montieren Sie den Wechselrichter so, dass ein versehentliches Berühren nicht möglich ist.
Berühren Sie keine heißen Oberflächen.
Warten Sie vor Beginn der Arbeiten 30 Minuten, bis die Oberflächen ausreichend abgekühlt sind.
Beachten Sie die Warnhinweise am Wechselrichter.

	NOTICE
Sand, Staub und Feuchtigkeit Durch das Eindringen von Sand, Staub und Feuchtigkeit kann der Wechselrichter beschädigt und die Funktion beeinträchtigt werden. Vermeiden Sie das Eindringen von Sand, Staub und Feuchtigkeit in den Wechselrichter.

	NOTICE
Beschädigung des Systems durch elektrostatische Aufladung Durch das Berühren von elektronischen Bauteilen kann der Wechselrichter über elektrostatische Entladung beschädigt oder zerstört werden. Erden Sie sich, bevor Sie ein Bauteil berühren. Tragen Sie beim Berühren von elektronischen Bauteilen geeignete persönliche Schutzausrüstung (z. B. antistatische Schuhe und Handschuhe).

	NOTICE
Beschädigung des Systems durch ungeeignete Reinigungsmittel Durch die Verwendung von Reinigungsmitteln können der Wechselrichter und alle weiteren Teile des Systems beschädigt werden. Reinigen Sie den Wechselrichter und alle weiteren Teile des Systems ausschließlich mit einem mit klarem Wasser befeuchteten Tuch.

6.1.2. Installation conditions and clearances at the installation site

Illustration 19. Installation conditions

The inverter must be installed away from direct sunlight and protected from direct rain and snow.

Illustration 20. Recommended distances at the installation site

Installation conditions

The wall must be stable enough for mounting the Inverter and must not be flammable.
Maintain a distance of at least 300 mm above the Inverter.
Keep a distance of at least 500 mm below the Inverter (cable ducts are not measured here).
Maintain a clearance of at least 300 mm from the front of the inverter.
Laterally: Keep a distance of at least 200 mm to the left of the Inverter and at least 1000 mm to the right.
The maximum distance between the Inverter and the installation location of the meter should be based on the cable supplied (10 m). The cable between the meter and the Inverter can be extended up to 100 m.

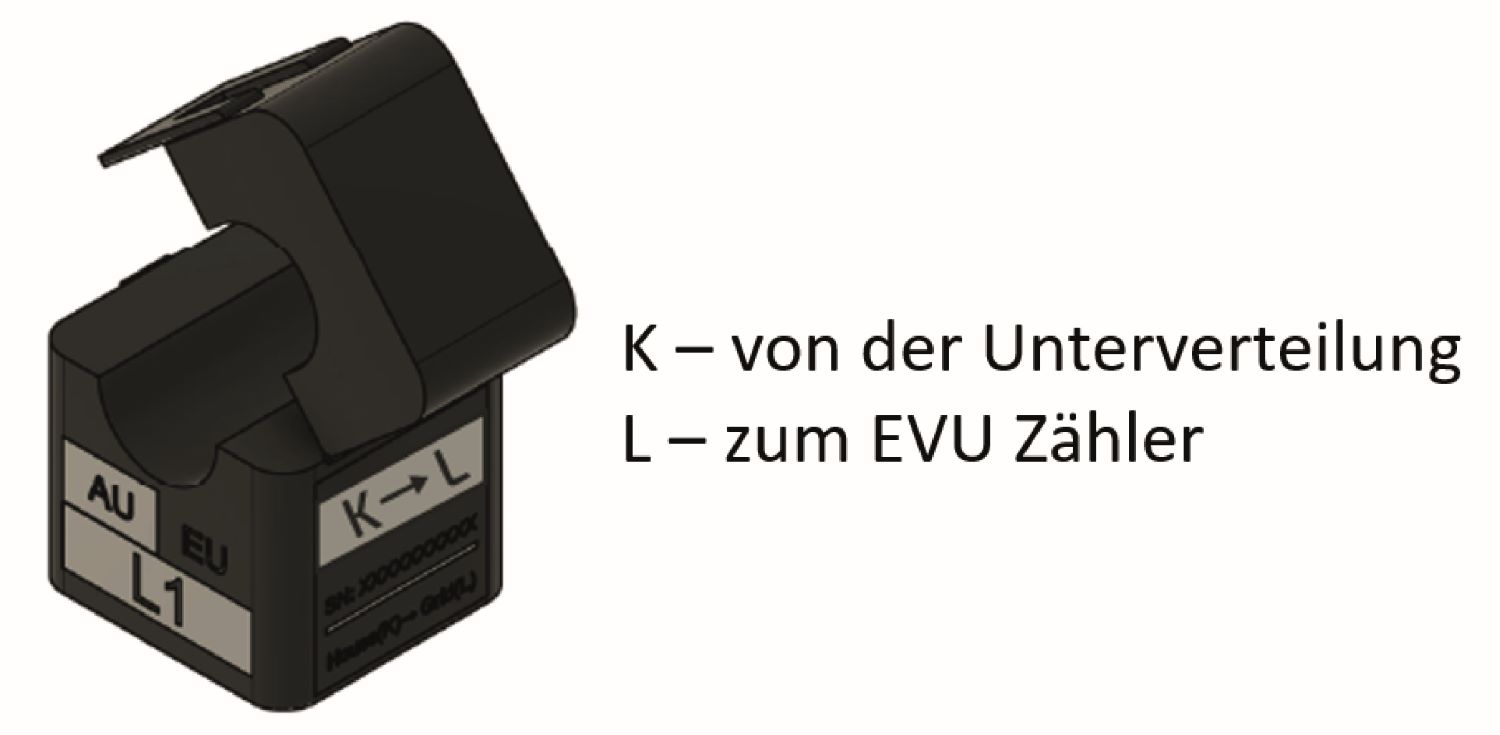

The pre-installed current transformers must not be shortened or extended.

6.1.3. Assembly

To install the FENECON Home 20 & 30 inverter on the wall, proceed as follows:

Assembly of the wall bracket

Mark and drill the holes for the wall bracket (Ø 8 mm, depth 80 mm).
Observe minimum clearances.

Mount the wall bracket on the wall. Always check the condition of the wall to see whether the screw anchors can be used.

Hook the inverter into the wall mount at the top and bottom using the handles.

Then secure on the right-hand side using the enclosed screw.

6.2. Montage — Batterieturm 1 mit FEMS-Box

6.2.1. Warnhinweise und Sicherheitshinweise

DANGER

Elektrischer Schlag durch spannungsführende Teile
Tod oder schwere Verletzungen des Körpers und der Gliedmaßen durch elektrischen Schlag bei Berührung spannungsführender DC-Kabel, die am Speichersystem angeschlossen sind.

Schalten Sie vor Beginn der Arbeiten den Wechselrichter, die BMS-Box und die Batteriemodule spannungsfrei und sichern Sie sie gegen Wiedereinschalten.
Warten Sie mit dem Beginn der Arbeiten am Wechselrichter mindestens 5 Minuten nach dem Abschalten.
Beachten Sie die Sicherheitshinweise der FENECON GmbH im Abschnitt [Sicherheit].
Berühren Sie keine freiliegenden spannungsführenden Teile oder Kabel.
Ziehen Sie die Klemmleiste mit angeschlossenen DC-Leitern nicht unter Last aus dem Steckplatz heraus.
Tragen Sie bei allen Arbeiten geeignete persönliche Schutzausrüstung.

DANGER

Feuer und Explosion
Tod oder schwere Verletzungen des Körpers und der Gliedmaßen durch Brand oder Explosion, im Fehlerfall kann im Inneren des Batteriemoduls ein zündfähiges Gasgemisch entstehen. Durch Schalthandlungen kann in diesem Zustand im Inneren des Produkts ein Brand entstehen oder eine Explosion ausgelöst werden.

Führen Sie im Fehlerfall keine direkten Handlungen am Speichersystem durch.
Stellen Sie sicher, dass Unbefugte keinen Zutritt zum Speichersystem haben.
Trennen Sie die Batteriemodule über die DC-Sicherung am Batterieturm vom Wechselrichter.
Schalten Sie den AC-Leitungsschutzschalter aus oder lassen Sie ihn, wenn dieser bereits ausgelöst hat, ausgeschaltet und sichern Sie ihn gegen Wiedereinschalten.
Führen Sie Arbeiten am Wechselrichter (z. B. Fehlersuche, Reparaturarbeiten) nur mit persönlicher Schutzausrüstung für den Umgang mit Gefahrstoffen (z. B. Schutzhandschuhe, Augen- und Gesichtsschutz und Atemschutz) durch.

DANGER

Feuer und Explosion bei tiefentladenen Batteriemodulen
Tod oder schwere Verletzungen des Körpers und der Gliedmaßen durch Brand oder Explosion aufgrund fehlerhaften Beladens von tiefentladenen Batteriemodulen.

Stellen Sie vor Inbetriebnahme des Systems sicher, dass die Batteriemodule nicht tiefentladen sind.
Nehmen Sie das System nicht in Betrieb, wenn die Batteriemodule tiefentladen sind.
Wenn die Batteriemodule tiefentladen sind, kontaktieren Sie den FENECON-Service.
Laden Sie tiefentladene Batteriemodule nur nach Anweisung des FENECON-Services.

	DANGER
Lichtbögen aufgrund von Kurzschluss-Strömen Tod oder schwere Verletzungen des Körpers und der Gliedmaßen durch Verbrennungen durch Hitzeentwicklung und Lichtbögen aufgrund von Kurzschluss-Strömen der Batteriemodule. Schalten Sie vor allen Arbeiten an den Batteriemodulen die Batteriemodule spannungsfrei. Beachten Sie alle Sicherheitshinweise der FENECON GmbH.

DANGER

Zerstörung eines Messgeräts durch Überspannung
Tod oder schwere Verletzungen des Körpers und der Gliedmaßen durch elektrischen Schlag beim Berühren eines unter Spannung stehenden Messgerätegehäuses: Eine Überspannung kann ein Messgerät beschädigen und zum Anliegen einer Spannung am Gehäuse des Messgeräts führen.

Setzen Sie nur Messgeräte mit einem DC-Eingangsspannungsbereich bis mindestens 1000 V oder höher ein.

	WARNING
Gewicht der Batteriemodule Verletzungen des Körpers und der Gliedmaßen durch Quetschen bei Herunterfallen während Transport oder Montage der Batteriemodule. Gehen Sie beim Transport und Heben der Batteriemodule vorsichtig vor. Beachten Sie das Gewicht der Batteriemodule und deren Schwerpunkt. Tragen Sie bei allen Arbeiten an den Batteriemodulen geeignete persönliche Schutzausrüstung.

CAUTION

Giftige Substanzen, Gase und Stäube
Durch Beschädigungen an elektronischen Bauteilen können giftige Substanzen, Gase und Stäube im Inneren des Wechselrichters entstehen. Das Berühren giftiger Substanzen sowie das Einatmen giftiger Gase und Stäube kann zu Hautreizungen, Verätzungen, Atembeschwerden und Übelkeit führen.

Führen Sie Arbeiten am Wechselrichter (z. B. Fehlersuche, Reparaturarbeiten) nur mit persönlicher Schutzausrüstung für den Umgang mit Gefahrstoffen (z. B. Schutzhandschuhe, Augen- und Gesichtsschutz und Atemschutz) durch.
Stellen Sie sicher, dass Unbefugte keinen Zutritt zum Wechselrichter haben.

CAUTION

Heiße Oberflächen
Verletzungen des Körpers und der Gliedmaßen durch Verbrennen an heißen Oberflächen: Die Oberflächen des Batterieturms können sich stark erwärmen.

Montieren Sie den Batterieturm so, dass ein versehentliches Berühren nicht möglich ist.
Berühren Sie keine heißen Oberflächen.
Warten Sie vor Beginn der Arbeiten 30 Minuten, bis die Oberflächen ausreichend abgekühlt sind.
Beachten Sie die Warnhinweise am Batterieturm.

	NOTICE
Sand, Staub und Feuchtigkeit Durch das Eindringen von Sand, Staub und Feuchtigkeit kann der Wechselrichter beschädigt und die Funktion beeinträchtigt werden. Batterietürme nur dort aufstellen, wo die Luftfeuchtigkeit innerhalb der Grenzwerte liegt und die Umgebung sand- und staubfrei ist.

	NOTICE
Elektrostatische Aufladung Durch das Berühren von elektronischen Bauteilen kann ein Batterieturm über elektrostatische Entladung beschädigt oder zerstört werden. Erden Sie sich, bevor Sie ein Bauteil berühren. Tragen Sie beim Berühren von elektronischen Bauteilen geeignete persönliche Schutzausrüstung (z. B. antistatische Schuhe und Handschuhe).

	NOTICE
Reinigungsmittel Durch die Verwendung von Reinigungsmitteln können Batterietürme und alle weiteren Teile des Systems beschädigt werden. Batterietürme und alle weiteren Teile des Systems ausschließlich mit einem mit klarem Wasser befeuchteten Tuch reinigen.

CAUTION

Arbeitsschutz bei der Installation von Batterietürmen und -modulen
Gefahr von Verletzungen des Körpers und der Gliedmaßen durch unsachgemäße Handhabung von Batteriemodulen.

Tragen Sie bei der Montage der Batteriemodule persönliche Schutzausrüstung: Schutzbrille, isolierende Handschuhe und Sicherheitsschuhe.
Tragen Sie keine leitfähigen Schmuckgegenstände (z. B. Uhren, Armbänder, Ringe).

6.2.2. Aufstellort — Batterietürme

Es wird empfohlen, die Batterietürme im Innenraum zu installieren.
Bei Installation im Freien muss ein Witterungsschutz (Sonnen- und Niederschlagsschutz) vorgesehen werden.
Vermeiden Sie bei der Montage Schmutz und Staub.
Stellen Sie sicher, dass Batterietürme nicht in einem Gebiet aufgestellt werden, das durch Überschwemmungen gefährdet ist.
Installieren Sie Batterietürme nicht in stark feuchten Bereichen (z. B. Badezimmer).
Installieren Sie Batterietürme nicht dort, wo die Umgebungsbedingungen außerhalb der zulässigen Werte liegen (Kapitel 3: [Technische Daten]).
Halten Sie Batterietürme von Wärmequellen und Feuer fern.
Stellen Sie den direkten Kontakt zwischen Batteriemodulgehäuse und Umgebungsluft sicher und decken oder schirmen Sie das Batteriemodul nicht ab.

6.2.3. Conditions at the installation site

Indoor or outdoor installation
We recommend installing the FENECON Home 20 & 30 battery tower indoors. However, the battery tower can also be installed outdoors protected from the weather (e.g. garage).

6.2.4. Installation conditions and clearances at the installation site

Illustration 21. Installation conditions.

The battery tower must be installed protected from direct sunlight, rain and snow.
In conditions outside the optimum temperature range, the performance of the battery is reduced. (optional temperature range +15 °C to +30 °C)

Illustration 22. Empfohlene Abstände am Aufstellort — Batterietürme

A lateral clearance of 300 mm from a wall and 300 mm between two battery towers is recommended.
Clearances of 300 mm from a wall are recommended at the front.
The FENECON Home 20 & 30 battery tower and Inverter should be installed/mounted one above the other. If there is not enough space above, the battery tower and inverter can also be installed next to each other.
A clearance of 200 mm from the ceiling is recommended.

ACHTUNG: Bei Unterschreitung der empfohlenen Abstände kann es zu erschwerter Installation führen und ggf. zu früherem Derating kommen.

6.2.5. Montage — Batterieturm 1 mit FENECON Home 20 & 30-EMS-Box

Proceed as follows to set up the battery tower:

The battery tower is installed stackable in front of a wall on a solid and level floor.
The clearance to the wall must be 40 to 65 mm so that the wall bracket can be fitted correctly.

Place the base on the feet at the installation location (maintain a clearance of 40 to 65 mm from a wall).

Place an FENECON Home 20 & 30 battery module on the base, paying attention to the plug-in bolts and positioning holes.
A black protective film may be stuck to the electrical connectors of the battery. If present, remove this before plugging together.

A maximum of 15 FENECON Home 20 & 30 battery modules can be stacked on one Base.

Mount all remaining FENECON Home 20 & 30 battery modules in the same way.
Between 5 and 15 battery modules can be stacked.

	DANGER
Electric shock Death or serious injury to the body and limbs due to electric shock. Stellen Sie sicher, dass der Leistungsschalter der BMS-Box ausgeschaltet ist, bevor die BMS-Box installiert wird.

Place the FENECON Home 20 & 30 BMS box on the last battery.

Attach FENECON Home 20 & 30 EMS box.

Mount the T-piece and the bracket with the enclosed M6 bolt.

Hook in the mounting rails of the EMS box (wall side) and mark the holes for the wall bracket on the wall (see previous picture).
Drill the holes and screw the wall bracket to the wall.
Hook in all other rails alternately left/right one module lower and screw on with the enclosed bolts.
The following bracket arrangement is recommended for attaching the battery towers.
From 10 battery modules, two holders must be used on each side.

Insert the side panels of the base, the battery modules, the BMS box and the EMS box.

Illustration 23. Arrangement of the module fastening

You will find the assembly instructions for 2 or 3 battery towers in the section [Assembly of additional battery towers].

6.3. Installation — Battery tower on split base

The split base can only be used with battery modules with item number FEH021.

The split base is used for a larger footprint installation of a battery tower, which reduces its height and enables installation in rooms with low ceilings.

Proceed as follows to set up a battery tower with a split base:

The battery tower is installed stackable in front of a wall on a solid and level floor.
The clearance to the wall must be 40 to 65 mm so that the wall bracket can be fitted correctly.

Place the base on the feet at the installation location (maintain a clearance of 40 to 65 mm from a wall).

Place a battery module on the base, paying attention to the plug-in bolts and positioning holes.
A black protective film may be stuck to the electrical connectors of the battery. If present, remove this before plugging together.

A maximum of 15 battery modules can be mounted on one split base.
Ensure that the modules are evenly distributed on both sides of the split base.
The difference in tower height must not exceed 5 modules.
→ If this cannot be complied with, a maximum of 10 battery modules must be stacked on one side of the system.

Install all remaining battery modules in the same way.

	DANGER
Electric shock Death or serious injury to the body and limbs due to electric shock. Stellen Sie sicher, dass der Leistungsschalter der BMS-Box ausgeschaltet ist, bevor die BMS-Box installiert wird.

Place the FENECON BMS box on the last battery.
It does not matter which of the two towers on the split base the FENECON BMS box is placed on.

Attach the FENECON EMS box to the BMS box.

Place the Top box on the second tower.

Place the FENECON extension box on the top of all other split sockets.

Fit the T-piece and the bracket with the enclosed M6 bolt.

Hook in the fixing rails of the EMS box and the Top box (wall side) and mark the holes for the wall bracket on the wall.
Drill the holes and screw the wall bracket to the wall.
Hook in all other rails alternately left/right one module lower and fasten with the enclosed bolts.
The arrangement of the mounting brackets shown here is recommended for attaching the battery towers.

See graphic Arrangement of module mounting — Split base for installation details.

Attach the side panels of the split base, the battery modules, the BMS box, the EMS box and the Top box.

split base fixing brackets configuration

Illustration 24. Module mounting arrangement — Split base

6.4. Electrical installation

6.4.1. Earthing the inverter and the battery tower

The inverter must be grounded directly to the earth circuit connector.
At least a 10 mm² grounding cable must be used.
To do this, attach the grounding cable to the inverter at the bottom right using the enclosed screw (red).

The battery tower must be grounded directly to the earth circuit connector.
At least a 10 mm² grounding cable must be used.
To do this, attach the grounding cable of the EMS box to the grounding bolt (red).

Each additional battery tower (Parallel box or Extension box) must be grounded directly to the earth circuit connector.
At least a 10 mm² grounding cable must be used.
To do this, attach the grounding cable of the parallel or extension box to the grounding bolt (red).

The cross-section of the earthing must be at least 10 mm².
The inverter and the battery towers must be individually grounded to the equipotential bonding.

6.5. Approved network configurations for connecting the FENECON Home 20 & 30

Illustration 25. Approved network configurations for connecting the FENECON Home 20 & 30

6.5.1. Connection and wiring of the AC circuit

Illustration 26. General information AC connection

Table 36. Components for AC connection (not included in the scope of delivery)
List item	Description
1	Bi-directional meter from energy supplier
2	3-pole inverter fuse protection (20 kW — 40 A; 29.9 kW — 63 A)*¹
3	Fuse protection of the consumer loads (no emergency power) with RCD type A and suitable MCBs
4	Service switch for switching the emergency power loads to the mains (recommended)
5	Consumer loads protected by suitable MCBs and RCD type A 30 mA *²
6	Consumer loads — supplied with emergency power maximum 20/30 kW/6.666/9.97 kW per phase (also applies in normal operation if grid is available!); no other AC generators permitted
7	Consumer load not supplied with emergency power
8	AC supply to the EMS box (if consumer loads are connected to the emergency power outlet)
9	Fuse protection maximum C6 or C10 1-pole
10	Earth circuit connector

*¹ In addition, the currently valid national regulations and the specifications of the relevant grid operator must be observed. (If an RCD is required by the grid operator, an RCD type A with a tripping current of 300 mA is recommended; at 30 mA, unwanted shutdowns may occur.)

*²The currently valid national regulations, the specifications of the associated network operator and the manufacturer’s specifications must be observed.

Illustration 27. Recommended maintenance switch for emergency power outlet

Table 37. Description of the switch positions of the maintenance switch (not included in the scope of delivery)
List item	Description
1	Emergency power consumers are supplied with emergency power via inverter (normal position)
2	Emergency power consumers are disconnected from the inverter and grid
3	Emergency power consumers are supplied from the grid

The automatic emergency power switchover is not affected by the maintenance switch.

Illustration 28. AC connection Energy meter

Table 38. Components for AC connection
Item	Description
1	2 bi-directional meter from energy supplier
2	Inverter fuse protection C40/C63 3-pole*¹
3	Consumption fuse (no Back-up Power) with RCD type A and suitable circuit breakers
4	Consumption not supplied with emergency power
5	Folding transformer (directly behind utility meter) already pre-installed on the energy meter
6	Energy meter
7	Fuse for the Energy Meter (recommended) B6 3-pole

*¹ In addition, the currently valid national regulations and the specifications of the relevant grid operator must be observed. (If an RCD is required by the grid operator, an RCD type A with a tripping current of 300 mA is recommended; at 30 mA, unwanted shutdowns may occur.)

Insert the inverter supply cable and the cable for the emergency power outlet into the cable gland.

Strip the sheath and the cores.
Make sure that the PE is slightly longer than the other cores.

Section

Description

Dimensions

1

Outer diameter

21 to 26 mm

2

Length of stripped cable

70 to 80 mm

3

Length of stripped conductor

11 to 13 mm

4

Conductor cross-section

10 to 16 mm²

Press the enclosed cable lugs onto the cores. Alternatively, use other suitable cable lugs. The screw diameter of 5 mm must be observed here.

Connect the cables to the connections provided (ON-GRID/OFF-GRID). To do this, use the nuts provided and tighten to 2-3 Nm.
Ensure that a clockwise rotating field is connected.
Ensure that phase L1 on the inverter and on the energy meter is the same phase; also ensure that this is the case for phases L2 and L3.
The inverter must be pre-fused with a C40/63 MCB.

Fasten the cable gland to the inverter. Tighten the bolts with 3 to 4 Nm.

Check the junction box of the split-core CTs.
Connect the transformer in the sub-distribution board directly behind the grid operator’s meter.
To do this, fold the respective transformer around the phases L1 — L3 and close until the lock audibly engages.
The cable between the transformer and the energy meter must not be shortened or extended.

The maximum current carrying capacity is 120 A per phase.
K — from the sub-distribution board
L — to the grid operator’s meter (grid connection)
The cable between the transformer and the energy meter must not be shortened or extended.
The inside diameter of the hinged cable is 16 mm.
The transformer and meter cannot be replaced by other types.
It must be ensured that phase L1 is also phase L1 on the inverter.

Connect the voltage tap to the marked connections on the energy meter.
Pre-fuse the energy meter with a B6A breaker for each phase.
The split-core CTs are already connected. If the measuring sensors of the smart meter were unscrewed during installation for installation reasons, please ensure that they are reconnected in the correct order.

It is recommended that a maintenance switch is installed for the emergency power outlet.
In the event of maintenance or failure of the inverter, the emergency power consumers can continue to be supplied via the power grid.

Es wird ein 4-poliger Wartungsschalter empfohlen. Es ist darauf zu achten, dass es beim Schalten zu keiner Sternpunktverschiebung kommen kann.

Der richtige Wartungsschalter muss vom Fachbetrieb unter Beachtung der Gegebenheiten vor Ort ausgewählt werden.
This does not affect the function of the automatic emergency power switchover.

6.5.2. Synchronize to the grid

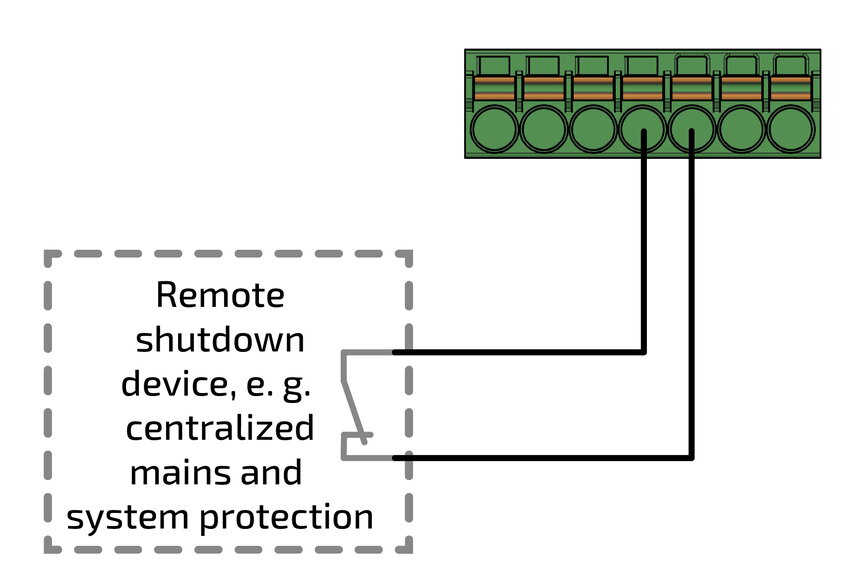

Table 39. Synchronize to the grid — Jumper between pin 7 and 8
	In order for the inverter to synchronize to the grid, a jumper must be connected between pin 7 and pin 8. A core with a cross-section of 0.34 mm² to 0.75 mm² is recommended.

6.5.3. AC connection of the FENECON Home 20 & 30-EMS-Box

An external 230 V power supply is required to supply the FENECON Home 20 & 30 EMS box.
The purpose of this is to avoid loading the empty battery with additional consumer loads. This can occur particularly in winter when there is no sunshine or when there is snow on the PV system.

Feeding the cable through the smaller hole of the multi-hole seal.
A cross-section of 3 x 1.5 mm² is recommended.
Make sure that the housing with the 3-hole seal is used.
The other housing will be needed later.

Insert the cable through the bolt connection and the multi-hole seal into the Harting housing.

Harting socket insert, 10-pin, with cable.
- Connect L to 1.
- Connect N to 2.
- Connect PE to PE.

The other pins are for the integrated relay contacts.
If these are not used, the socket can be bolted into the housing.
Close the remaining feedthroughs of the multi-hole seal with the enclosed filler plugs (10 mm) and tighten the bolt connection.

Connect the plug to the FEMS box.
Lock the plug at the top and bottom through the holders.

6.6. Explanation of the "zero feed-in" function

Connection and operation of electrical energy storage systems on the low-voltage grid in accordance with VDE-FNN Note 07/2024 — Requirements for the energy flow direction sensor EnFluRi (section 4.3) and zero feed-in (section 4.4).

FENECON GmbH hereby declares that the inverters listed in the following table in combination with the respective energy meters specified fulfill the above requirements:

Inverter

Description

Internal Energy Meter

Home Energy Meter
(FHM-120-C)*

3-phase sensor without current transformer
at the grid connection point (FHM-C)**

Home 6

FINV-6-2-DAH

(optional)

Home 10 (Gen. 1)

FHI-10-DAH

Home 10 (Gen. 1)

FHI-10-DAH 16A

Home 10

FINV-10-2-DAH

(optional)

Home 15

FINV-15-2-DAH

(optional)

Home 20

FHI-20-DAH

(optional)

Home 30

FHI-29,9-DAH

(optional)

Commercial 50 (Gen. 3)

FINV-50-1-DAH

Commercial 100

FINV-100-1-DAH

*Item no.: FHO055
**Item no.: FEH040

6.6.1. Configuration for zero feed-in via the FENECON Energy Management System

The inverters listed above can be configured via the FENECON Energy Management System so that the PV energy generated is used entirely by the user and is not fed-in to the public grid.
To do this, the Maximum feed-in power setting in the commissioning wizard must be set to 0 watts.

6.6.2. Notes on the zero feed-in function:

If FENECON inverters are used, deviations of < 1 % per phase may occur.
The accuracy of the zero feed-in depends on the power factor of the connected consumer loads.
A high proportion of reactive power, especially in the form of harmonics, can negatively affect the accuracy of the active power measurement.
With zero feed-in, devices that regulate to PV surplus no longer work, as there is no longer a grid feed-in to which they can regulate.

6.6.3. Validity of the declaration:

This declaration applies to all identical inverters. It loses its validity if:

changes have been made to the device,
the connection is made improperly,
the installation was not carried out in accordance with the installation and service instructions, or
the inverter is operated with an external generator.

6.6.4. DC cable from the battery tower to the inverter

This section can be skipped if there are several battery towers.

You will find the installation instructions for 2 or 3 battery towers in the section Electrical installation of additional battery towers.

Use the enclosed DC cable (3 m) for the connection between battery tower and inverter.
Connect the cables to the battery (BAT OUT) and to the inverter (BAT1).
Connect plus (+) to plus (+) and minus (-) to minus (-).
If the DC cables supplied are not long enough, please contact your sales partner.

The DC plugs used on the battery side are not compatible with commercially available MC4 plugs.

The 29.9 kW variant has two battery inputs. The FENECON Home 20 & 30 battery tower must always be connected to battery 1 (BAT1).

6.6.5. Connection and cabling of PV system

The various PV strings can be connected directly to the PV inputs on the inverter.
The 20 kW variant has 2 MPPTs, each with two inputs (red; blue).
The 29.9 kW variant has 3 MPPTs, each with two inputs (red; blue; green)

Type 2 overvoltage protection is integrated in the inverter.

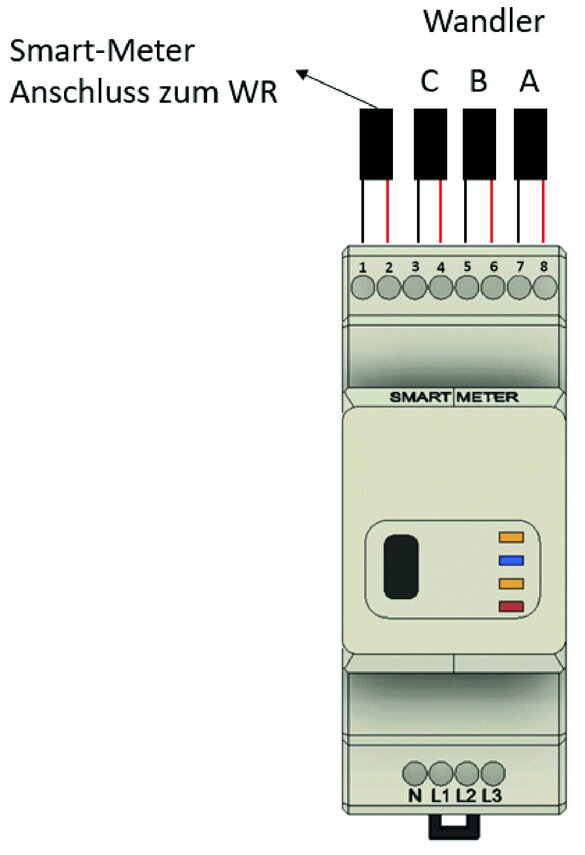

6.6.6. Connecting the smart meter to the inverter

Connect the enclosed cable for the meter to the bayonet connection side of the inverter and lock it.
Connect the other end to the meter.
If the existing 10 m cable is not sufficient, it can be extended up to 100 m using a conventional network cable.

6.6.7. Communication between inverter and EMS box

Feed the enclosed communication cable (3 m network cable with open end) through one of the holes in the multi-hole seal of the communication port cover.
Leave the other openings of the multi-hole seal closed.

Connect the plug of the communication cable to the inverter.

Connecting the cover to the inverter and tightening the bolt connection.

Feeding the cable through one of the four holes in the multi-hole seal.

Insert the cable through the bolt connection and the multi-hole seal into the Harting housing.

The other end with two open pins must be connected to terminal 1/2 on the Harting plug (16-pin — A).
Connect the white core to terminal 1.
Connect the orange core to terminal 2.

If controllable consumer loads have been installed and one of the following FEMS extensions has been purchased, the following two steps can be neglected for the time being.

FEMS App Heat pump "SG-Ready"
FEMS App CHP

Then screw the socket into the Harting housing.
Close the other openings in the bolt connection with the enclosed filler plugs (8 mm).
Provide strain relief for the cable by tightening the bolt connection.

Close the remaining feedthroughs of the multi-hole seal with the enclosed filler plugs (8 mm) and tighten the bolt connection.
Lock the plug at the top and bottom through the brackets.

6.6.8. Communication from a battery tower

If only one battery tower is installed, the jumper plug (included in the scope of delivery) must be plugged into the PARALLEL OUT connection and locked by turning the underside.

You will find the assembly instructions for 2 or 3 battery towers in the section [Communication of additional battery towers].

6.6.9. Communication with the customer network

To seal the network connections, insert the cable into the connector and bolt it in place. Only the multi-hole seal and the bolt connection are required.

If the battery tower is installed indoors, this point can be skipped and the network cable can be connected directly.

Make sure that the network connector protrudes approx. 3 mm above the bayonet catch at the front.
For example, the jumper plug of the battery can serve as a reference for the position of the network connector.

For internet connection and system configuration, connect the network cable to the LAN port of the battery and the other end of the cable to the customer’s network.

The electrical energy storage system does not have a WiFi function.

6.6.10. Cover for the internal input (optional)

Optionally, a network connector housing with filler plug (included in the scope of delivery) can be used as a cover for the internal connection. The network connector housing and the filler plug must be fitted beforehand.

An IP classification is only guaranteed if the corresponding plugs are locked on all connections.

7. Parallel connection of several battery towers

7.1. Assembly of further battery towers

7.1.1. Montage — Batterieturm 2 mit FENECON Home 20 & 30-Parallel-Box

If a second battery tower is available, the Parallel box is plugged onto the second battery tower instead of the EMS box.

To do this, repeat the steps from the section Assembly battery tower 1. In step 8, attach the FENECON Home 20 & 30 parallel box instead of the FENECON Home 20 & 30 EMS box.

7.1.2. Montage — Batterietürme 3 bis 4 mit FENECON Home 20 & 30-Extension Box

If there is a third to fourth battery tower, an Extension box is attached to the third to fourth battery tower instead of the EMS box.

To do this, repeat the steps from the section Assembly battery tower 1. In step 8, attach the FENECON Home 20 & 30 extension box instead of the FENECON Home 20 & 30 EMS box.

7.2. Electrical installation of additional battery towers

7.2.1. DC cable between two battery towers and the Inverter

Use the enclosed DC cable (3 m) for the compound from the second battery tower with the plugged-on Parallel box to the inverter.
If the length of the DC battery cable is not sufficient, extend it using one of the enclosed sets of DC cables (2 m).
Connect the cables to the second battery tower (Parallel box) (BAT OUT) and the inverter (BAT) (red).
Connect plus (+) to plus (+) and minus (-) to minus (-).
The two battery towers are connected to each other using the second set of cables supplied in the Parallel box.
To do this, connect the two cables to the first battery (EMS box) (BAT OUT) and to the second battery (Parallel box) (BAT IN) (green).

7.2.2. DC cable between the third to fourth battery tower and Parallel box

The third and fourth battery towers are connected to the Parallel box. Depending on the distance, a 2 m cable set is sufficient; if not, the two enclosed cable sets can be compounded and thus extended to 4 m.
To do this, connect the two cables between the Extension box (BAT OUT) and the parallel switch box (BAT IN).

7.3. Communication of further battery towers

7.3.1. Communication between two to four battery towers

If several battery towers are operated in parallel, the network cable supplied with the Parallel box and Extension box must be used between the towers (green).
The network cable must be plugged in and locked between the EMS box (PARALLEL OUT) and the Parallel box (PARALLEL IN).
Likewise on all other towers, always between PARALLEL OUT and PARALLEL IN (blue/orange).
At the last tower, plug the jumper plug into PARALLEL OUT (red).

8. Initial commissioning

	NOTICE
Beachten Sie die Hinweise in der Betriebsanleitung In der Betriebsanleitung wird darauf hingewiesen: that an appropriate cooling down period must be observed before starting work on the devices, dass durch Tragen geeigneter Schutzhandschuhe der Gefahr von Verbrennungen vorgebeugt wird.

8.1. Generelle Sicherheitshinweise zur Inbetriebnahme

Commissioning must only be carried out by trained specialist personnel.

Do not disconnect the electrical connectors while they are live. Disconnect the power supply.
Batteries must not be connected or disconnected when a current is flowing.
Opening batteries is prohibited.
Before commissioning the system, ensure that the battery modules are not deeply discharged.
Wenn die Batteriemodule tiefentladen sind, kontaktieren Sie den FENECON-Service.
Only charge deeply discharged battery modules as instructed by the FENECON Service.

8.2. Checking the installation, connections and cabling

Check the system as follows before initial commissioning:

All components (clearances, environment, mounting) are installed correctly.
All internal wiring is complete and properly connected.
All external supply lines (power supply, communication cable) are properly connected.
All connected loads are matched to the system and the necessary settings have been made.
All necessary tests of the system were carried out in accordance with the standards.

8.3. Switching the system on/off

8.3.1. Switching on the system

Rack in the EMS box (sub-distribution board or socket).
Rack in the inverter (sub-distribution board, grid and emergency power side).
If available, switch on the PV system with the DC switch on the inverter (left side of the inverter).

Racking in the battery tower (front battery tower).
If there are several battery towers, all towers must be racked in.

If commissioning has already been completed, the battery will start and the LED bar should flash after approx. 60 seconds.
The system is now ready for use.

Durch Drücken des Tasters an der Front der EMS-Box wird das System neu gestartet. Das erneute Hochfahren des Systems kann bis zu drei Minuten benötigen.

 Falls die IBN noch nicht abgeschlossen wurde, startet die Batterie nicht. +
-> xref:IBN_Assistent[Konfiguration per Inbetriebnahme-Assistent].

If the system has not yet been configured, the battery goes into error mode or switches off.
This can also happen during configuration. It is therefore recommended that you only switch on the battery when you are prompted to do so during the configuration process.

The inverter only starts after configuration and only then synchronizes with the grid.

8.3.2. FEMS push-button and LED ring

Table 40. Status of the LED ring on the FEMS box
	If the blue LED ring of the push-button does not light up, the FEMS box is not supplied with power or the FEMS box is switched off.
	If there is an internet connection to the FENECON server, the blue LED ring of the push-button lights up permanently.
	If the blue LED ring of the push-button flashes with an interval of 1 second, there is no internet connection to the FENECON server.

Pressing the push-button restarts the FEMS.

8.3.3. Switching off

Racking out the battery tower (front battery tower).
If there are several battery towers, all towers must be fused.

If present, switch off the PV system using the DC switch on the inverter.
Rack out the inverter. (sub-distribution board, grid and emergency power side).
Aussichern der EMS-Box (Unterverteilung, oder Steckdose).

The system is only completely switched off when all LEDs on the inverter and the battery are no longer lit. This can take approx. 30 seconds.
The inverter remains on if one of the three energy sources is not switched off.

8.4. Configuration via commissioning wizard

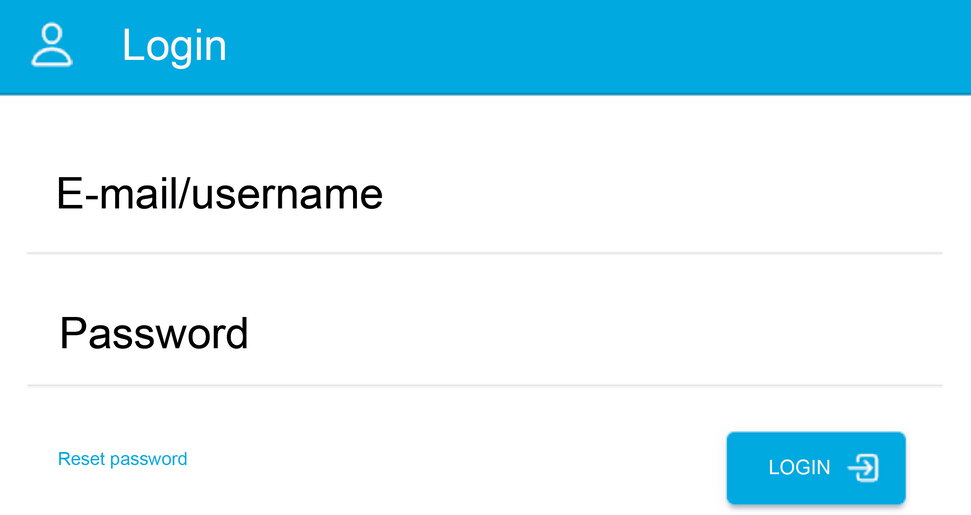

Open www.fenecon.de and click on the login to FENECON Online Monitoring"FEMS-Login" in the top right-hand corner. Alternatively, you can use the QR code below or the link to access the page.

https://portal.fenecon.de

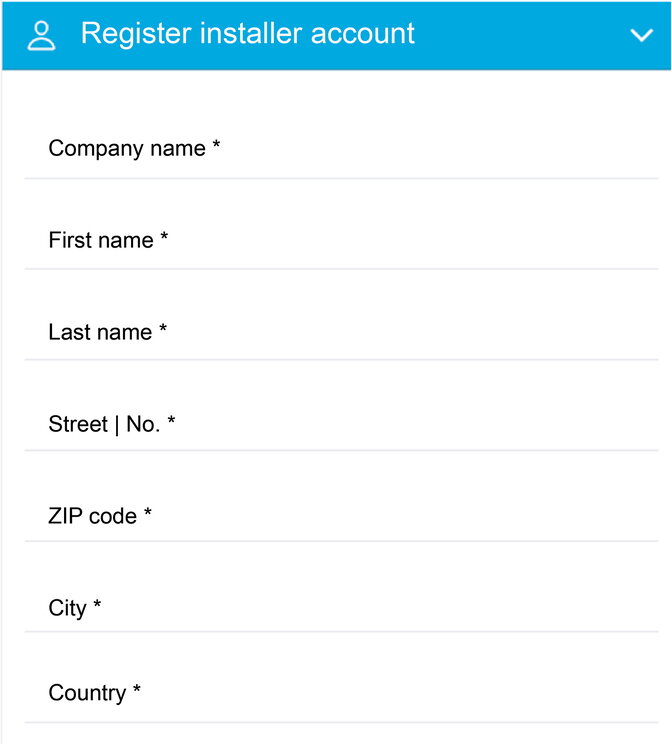

If you do not yet have an installer account, learn how to create one here.

After logging in, you will be taken to this screen.
Click on the plus symbol at the bottom center and then on ADD NEW FEMS.
TIP: If you cannot access this screen directly, please click on the burger menu at the top left and then on All systems.

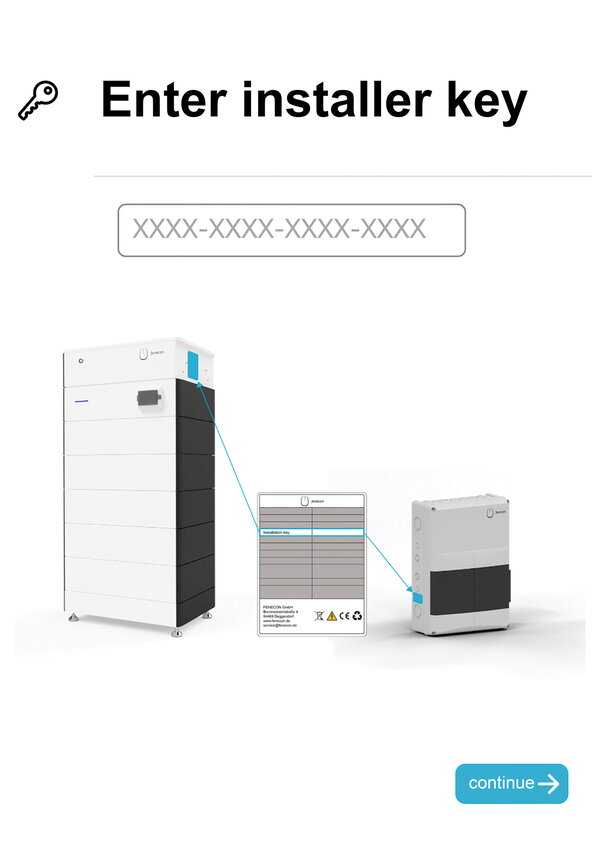

Enter the installer key.

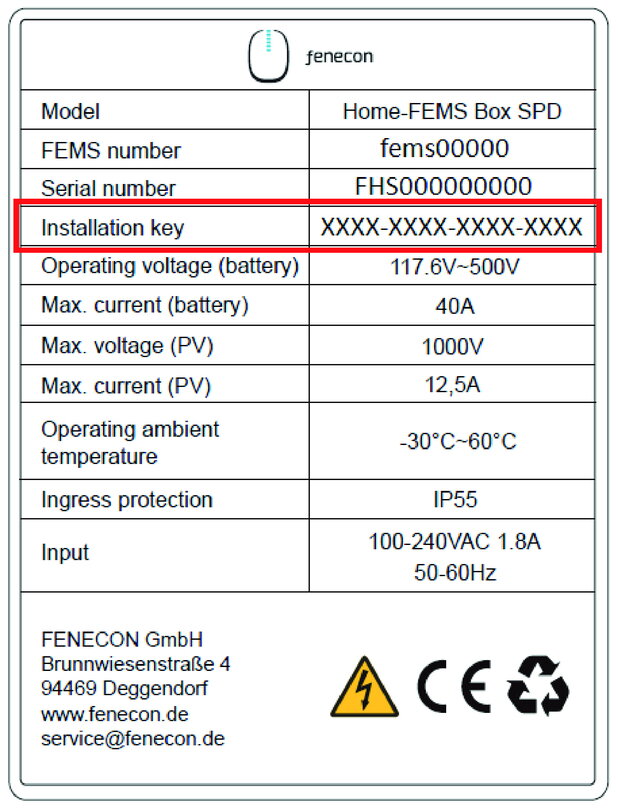

You can find this on the sticker on the inverter or on the FEMS box.

Carry out a software update if necessary.

Select the attachment type, in this case:
FENECON Home.

Select the system.

The product names are based on the output of the respective inverter.

If it is a system with a 6 kW or 10 kW inverter, select here whether an automatic off-grid switch is installed. If yes, the serial number must be entered here manually.

The contact details of the installer account are automatically transferred.

Enter the end customer’s contact details here.

The end customer account is created with the e-mail address entered here. The end customer commissioning report is also sent to this address. Both the installer and the end customer will receive a commissioning report by email.

Enter the location of the storage system here if the system location differs from the customer address (for service purposes).

Click on VALIDATE.
- Then select the address found from the list.

The location coordinates are checked here to ensure the functions of location-dependent applications (e. g. weather data).

If dimming is required at the system location in accordance with § 14a EnWG, you can set this here.

This is where you activate the emergency power function and, if necessary, the emergency power reserve.

The emergency power reserve can be configured by the end customer at any time afterwards. However, the general emergency power function CANNOT.

Select the energy flow direction meter ("EnFluRi") here:
- For Home 6, 10 & 15: Here you can select whether the internal one built into the inverter (standard) is selected, or whether the "small" energy meter is selected if the application requires cables longer than 15 meters. Optional accessories can also be selected here.
- Explicitly for Home 20 & 30: The standard scope of delivery or the optionally available, FENECON meter for higher currents is selected here.

Select the pre-fuse of the house connection meter here.
- Specified in amperes (A).

The connections of the MPP trackers are displayed here for checking purposes.
Check whether the connections of the MPPT used have been made correctly and confirm that the connections have been checked.

Configure shade management according to MPP trackers here.

If PV optimizers are used, shade management must be switched off.

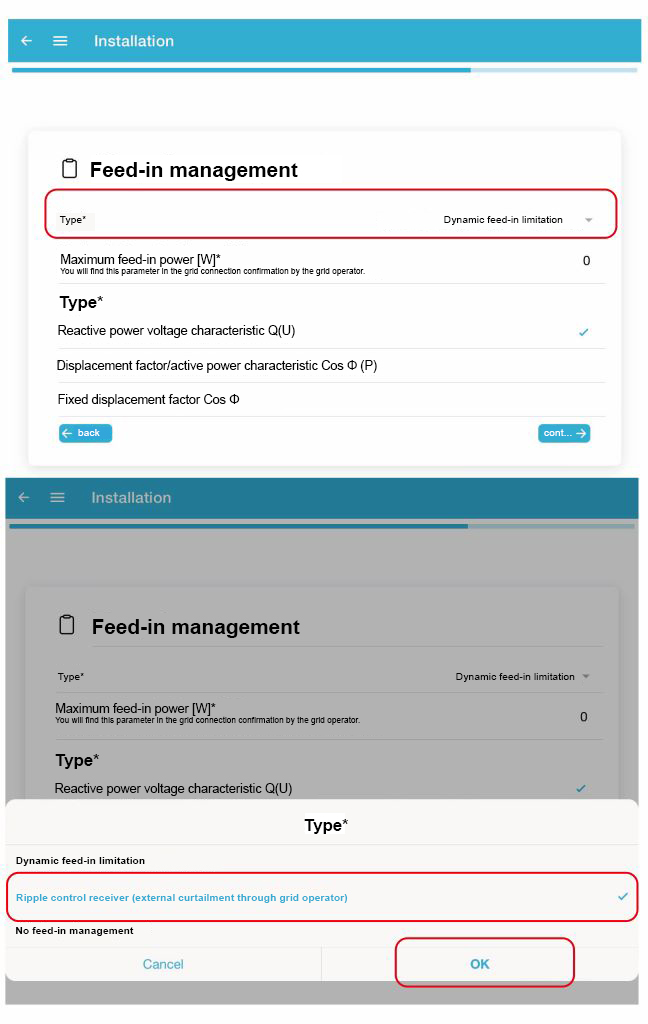

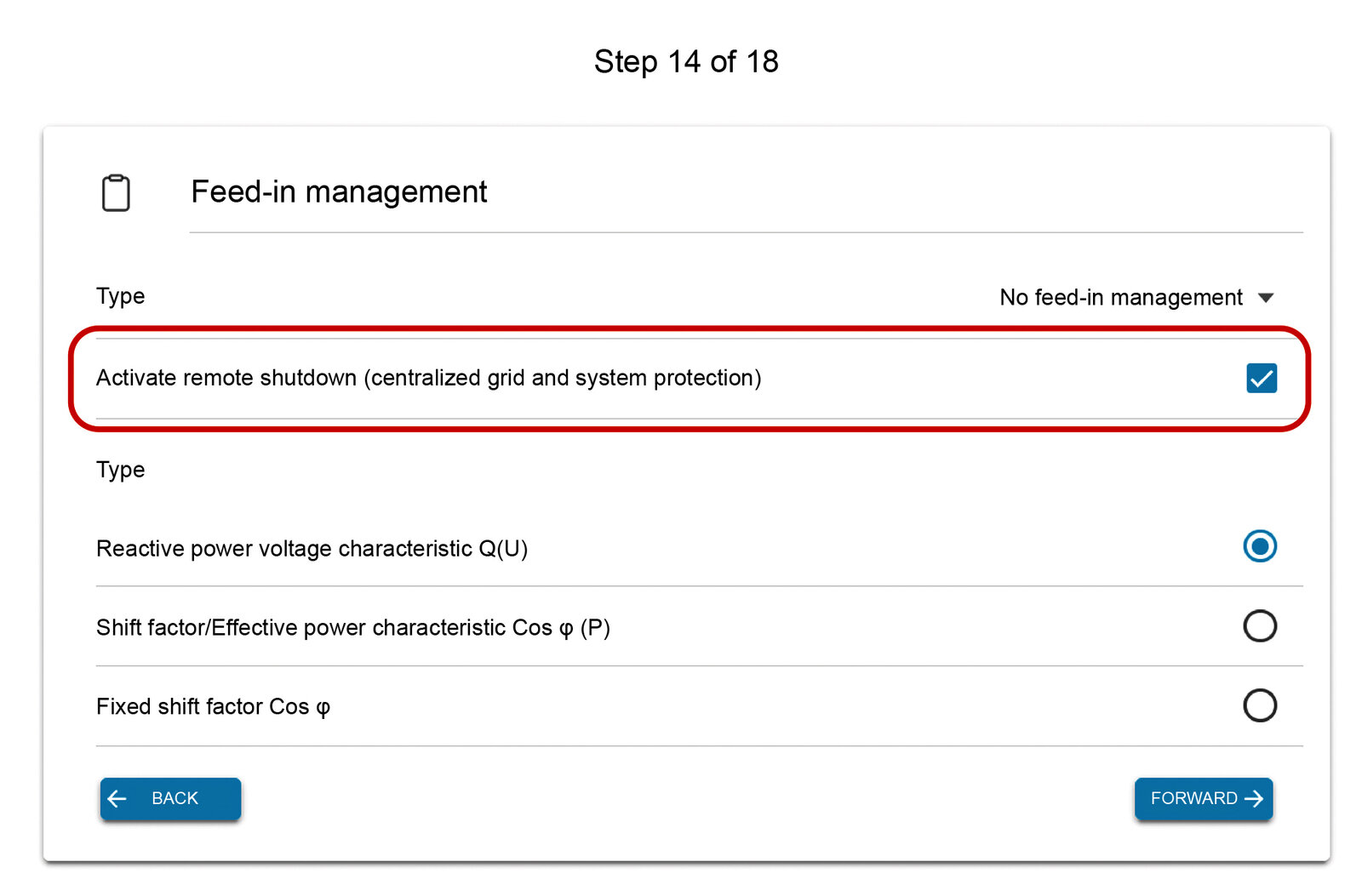

Configure Feed-in management according to the grid operator’s specifications.

Check the information you have previously entered and confirm the terms and conditions and warranty conditions.
- The battery and inverter must also be switched on.

After clicking on START CONFIGURATION the configuration of the system begins.

Leave the battery and inverter switched on during the entire configuration process.

Select the number of battery towers and modules.
- Confirm the displayed serial numbers of the system components.
- The readout may take a few minutes.

In rare cases, serial numbers must be added manually.

This completes the configuration via the commissioning wizard.
- The system is now ready for operation.

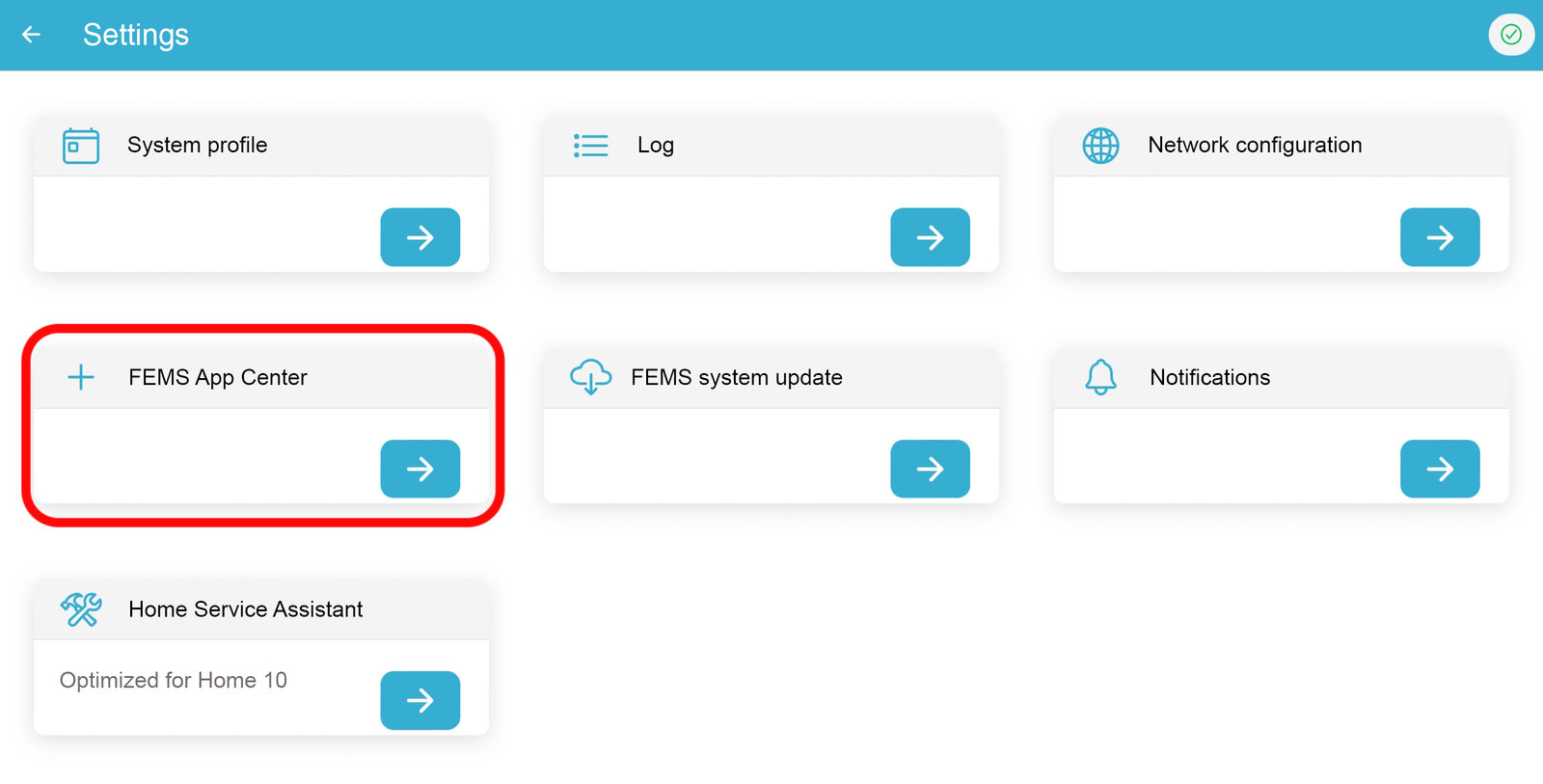

  - You can now continue with the installation of FEMS Apps by clicking on APP CENTER.

You will receive an e-mail with a commissioning report attached for your records.
The customer also receives an e-mail with the personal access data for end customer monitoring.

9. FEMS Online Monitoring

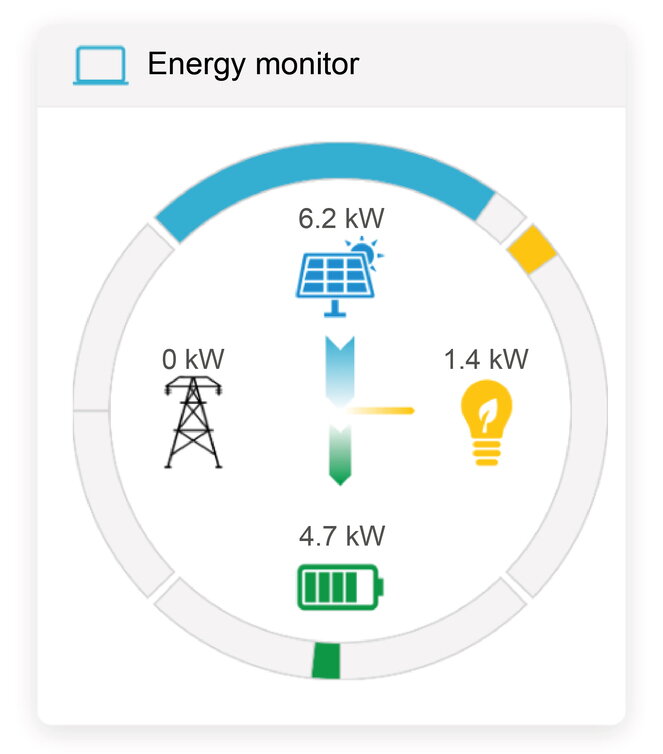

The FEMS Online Monitoring is used to visualize all energy flows in your system. The Energy Monitor shows live data on grid withdrawal or feed-in, PV production, charging/discharging of the battery energy storage system and power consumption. Other widgets show the percentage of self-sufficiency and Self-consumption. In addition, the individual widgets offer a detailed view, which can also be used to view the performance values with phase accuracy.

In addition to the pure information display, all additionally purchased FEMS extensions, such as for integrating a heat pump, Heating element, combined heat and power plant (CHP), are also listed in Online Monitoring. Their functionality can be controlled via the corresponding widget.

In addition to the live view, the history offers the option of selecting self-selected time periods for Online Monitoring. The status of the entire system and the individual components can be monitored at any time using the info symbol.

9.1. Access data

Access to FEMS Online Monitoring is separated according to end customer and installer.

9.1.1. Access for the end customer

Access for the end customer is automatically generated once commissioning is complete and sent to the end customer by e-mail.
The terms and conditions still need to be confirmed here, then the monitoring is available without restrictions.

If additional users want to access the system, they must create their own user account. This is done as described in the section Configuration via commissioning wizard, but here "USER" must be selected in the header.

After successfully creating an additional user account, all we need is an email to service@fenecon.de with the email address used and the FEMS number concerned, we will create the link and other users can use the Online Monitoring of a system.

9.1.2. Access for the installer

The installer account can be created as described in the section Configuration via commissioning wizard on the FENECON homepage. Access is required for successful commissioning.

10. Capacity expansion of the system

The capacity can also be expanded at a later date; there is no time limit here.

The maximum capacity is not reached with additional new battery modules, as new modules are equal to the old modules.

10.1. Capacity expansion of the battery tower
by one or more battery modules

Der Batterieturm kann auf bis zu 15 Batteriemodule in einem Batterieturm erweitert werden.

If the electrical energy storage system is expanded with additional battery modules after commissioning, proceed as follows:

After a capacity expansion, the commissioning wizard must be carried out again.

Das System führt automatisch einen Referenzzyklus durch, berechnet bei geplanter Erweiterung den passenden Startzeitpunkt und bereitet die Batterie auf einen stabilen Zielwert von 30 % SoC vor.

Ablauf:

ab 70 % SoC: Laden auf 100 %, Haltezeit, danach Entladen auf 30 %
unter 70 % SoC: Entladen auf 0 %, Haltezeit, danach Laden auf 30 %

Empfehlung: Vorab möglichst einige vollständige Zyklen von 0-100 % durchführen, besonders bei älteren Batterien.

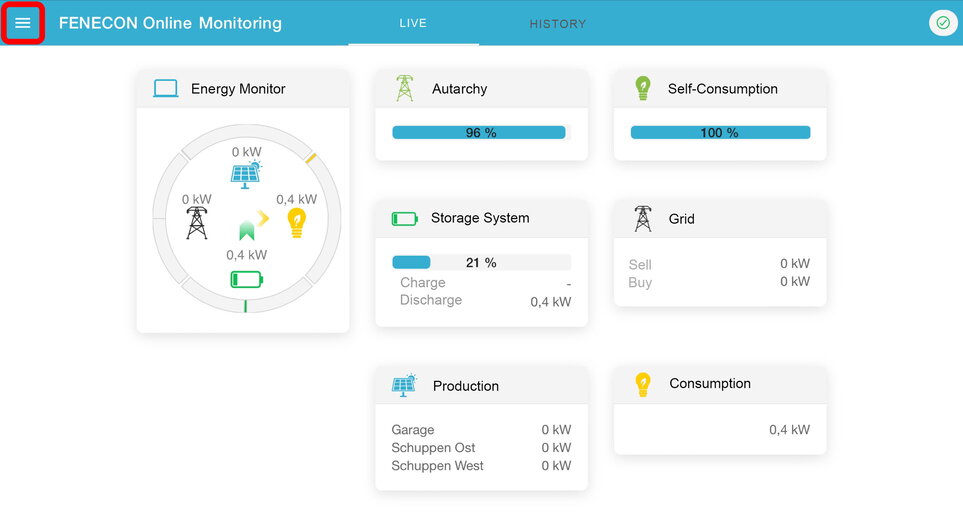

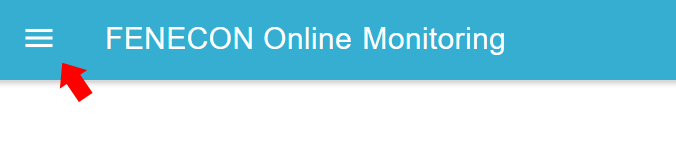

Open the Online Monitoring.
In order for the new modules to synchronize faster with the existing modules, an equal state of charge is required (30 % SoC). The electrical energy storage system automatically prepares itself if the state of charge does not have the same SoC.

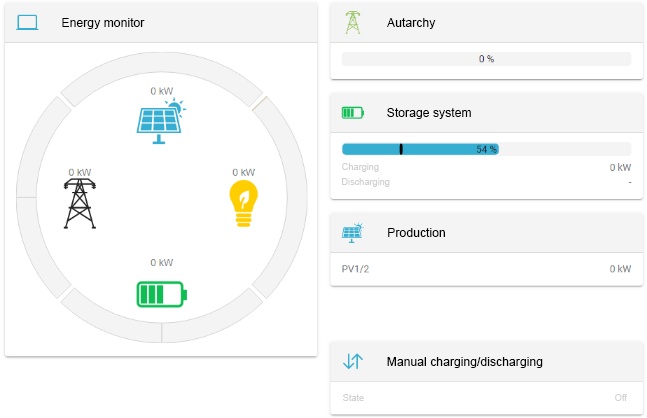

Click on the "Electrical energy storage system" widget in Online Monitoring.

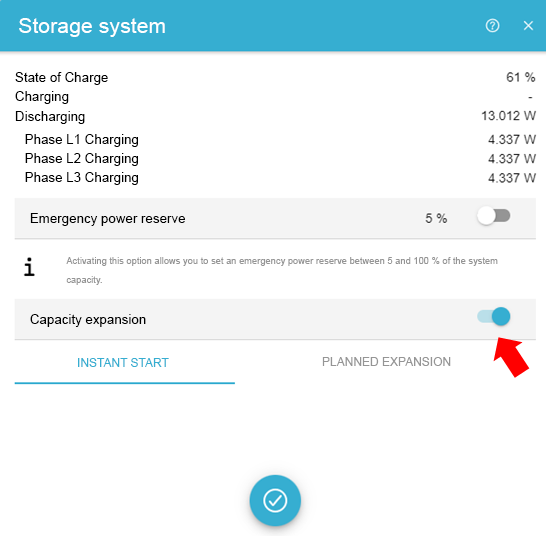

Activate the "Capacity expansion" function in Online Monitoring under Electrical energy storage system. The "Capacity expansion" is activated when the blue bar is displayed.

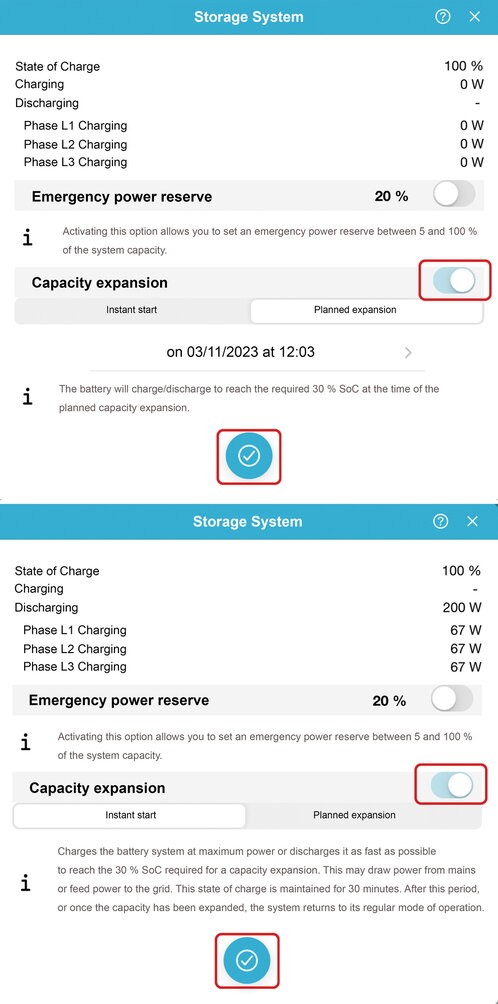

You can now choose between "Immediate start" and "Planned extension". With the two options, the battery is charged or discharged to 30 %.
When the state of charge is reached, charging/discharging is stopped and the charge level of 30 % is maintained.

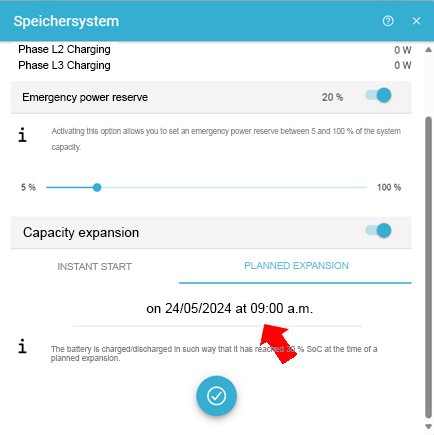

If you select "Planned extension", you can specify the planned day and time. In this example, 24.05.2024 and the time of 09:00 were selected. At this time, the battery is expected to be charged or discharged to reach 30 % for the "Planned extension".

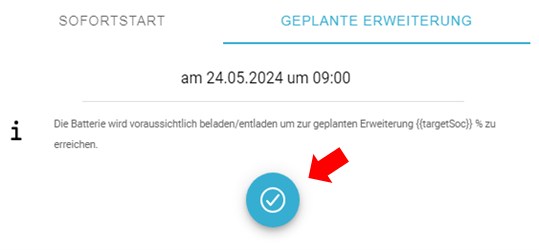

You must then confirm your desired settings by clicking on the blue tick. The desired extension will be saved and, depending on the option selected, implemented immediately or later at a specific time.

Then run the commissioning wizard again.

The capacity can also be extended at a later date; there is no time limit here. You will not reach the full capacity with the new battery module, as the new module will equalize with the old modules.

If the battery tower is extended by additional battery modules after several weeks or months, the following procedure must be followed:

29-30 % SoC

Charge/discharge the system to a charge level of 29-30 %; then switch off.

Switch off the entire system. The exact procedure is described in the section Switching off.
- Set the battery fuse switch to OFF.
- DC switch of the inverter to OFF. AC fuse on the grid and emergency power side to OFF.

Remove the top three side panels on each side.
Remove the latch up to the first battery module on both sides.

Remove the FEMS box and BMS box and place them on their side. To do this, screw the wall bracket of the BMS box from the wall.

Attach new battery module.

Proceed as described in section [Assembly — Battery tower 1 with FEMS box], step 8.
- Attach the FENECON BMS box.
- Attach the FEMS box.
- Attach the locks.
- Attach the side covers.

If the exact voltage value of the old and new battery modules has not been matched, SoC jumps will occur when the battery is charged and discharged. This means that the full capacity is temporarily not available.
The greater the voltage difference between the "old" and "new" batteries, the longer it can take until there are no more SoC jumps and the full capacity is available.

10.2. Capacity expansion of the system
by one or more battery towers

The capacity of the system can be subsequently expanded by one or more battery towers with the same capacity. There is no time limit here.

Der Maximalausbau des FENECON Home 20 & 30-Systems umfasst bis zu 4 Batterietürme mit je 4 bis 15 Batteriemodulen und maximal 168 kWh.

The full capacity is not achieved with new battery modules, as the new modules become similar to the old modules.

Das System führt automatisch einen Referenzzyklus durch, berechnet bei geplanter Erweiterung den passenden Startzeitpunkt und bereitet die Batterie auf einen stabilen Zielwert von 30 % SoC vor.

Ablauf:

ab 70 % SoC: Laden auf 100 %, Haltezeit, danach Entladen auf 30 %
unter 70 % SoC: Entladen auf 0 %, Haltezeit, danach Laden auf 30 %

Empfehlung: Vorab möglichst einige vollständige Zyklen von 0-100 % durchführen, besonders bei älteren Batterien.

Proceed as follows before the extension:

Activate the "Capacity expansion" function in Online Monitoring under Electrical energy storage system.
The battery is charged/discharged to 30 %. When the state of charge is reached, charging/discharging is stopped and the charge level is maintained.

Switch off the entire system. The exact procedure is described in detail in the section Switching off.
→ Fuse switch of the battery to OFF.
→ AC fuse of the inverter to OFF.

Assembly of the new battery towers as described from section Assembly — Battery tower 1 with FEMS box and section Initial commissioning.
Everything can then be switched on again as described in the Switching on the system section.

Run the commissioning wizard again.

If the exact voltage value of the old and new battery towers has not been matched, the new batteries will not be connected.
This is not displayed as an error, but it can happen that the SoC displays of the individual battery towers show different charge levels.
When the charge levels have equalized after a charging cycle, the last battery towers also switch on.
The battery towers work independently, so the flashing frequency of the different towers may vary. The SoC display of the individual towers may also differ briefly.

11. FEMS extensions

For the following FEMS extensions, the integrated relays can be used directly on the (first) battery tower.
Various pins on the Harting plugs are provided for this purpose.

Harting plug 10-pin: 3 x free relay channels (max.: 230 V; 10 A)
Harting plug 16-pin: 2 x control contacts (max.: 24 V; 1 A)
- 3 x digital input
- 1 x digital input for § 14a
- 1 x analog output (0-10 V)

It may not be possible to connect and operate all apps at the same time.
For more information on the following apps, please visit our homepage.

100 https://www.fenecon.de/fems-apps/

If the integrated relays are not sufficient, an external 8-channel relay board can be connected via Ethernet.

The pin assignment of the Harting plug (10-pin) is shown in detail below.

Table 41. Connector — Pin assignment — Power connector
Item	Description
1	230 V supply for internal components
2	Relay 1 (230 V; 10 A)
3	Relay 2 (230 V; 10 A)
4	Relay 3 (230 V; 10 A)
5	Neutral conductor connection (required for integrated meter)
6	PE connection

The pin assignment of the Harting plug (16-pin) is shown in detail below.

Table 42. Connector — Pin assignment: Control connector
Item	Description
1	RS485 connection — Inverter
2	RS485 connection — External devices
3	Analog output (0 to 10 V)
4	12 V DC (12 V; GND)
5	3 x digital inputs
6	Digital input for § 14a
7	Relay 5 (24 V; 1 A)
8	Relay 6 (24 V; 1 A)
9	PE connection

11.1. Connection of a heat pump via "SG-Ready"

The integration of an "SG-Ready" (Smart Grid-ready) heat pump is an advanced form of sector coupling of electricity and heat - often also referred to as a "power-to-heat" application. The control system ensures that the heat pump slightly overheats the thermal energy storage system at times when cheap (solar) electricity is available in order to save electrical energy at times when there is no cheap surplus electricity.

The internal relay contacts 5 and 6 can be connected via pins 5/6 and 7/8 on the Harting plug (16-pin — C).
For detailed information on connecting the heat pump, please refer to the manufacturer’s installation instructions.

After installing the components, the app still needs to be installed.
To do this, proceed as described in the section Activation of the app in the FEMS App Center.

11.2. Connection of a heating element with a maximum of 6 kW

The integration of an electric heating element is the simplest and cheapest form of sector coupling of electricity and heat — often also called a "power-to-heat" application.

If the capacity of the electrical energy storage system is exhausted, self-generated energy must be fed into the public grid with low remuneration. In these cases, it often makes sense to use the surplus current for water heating (e. g. for hot water buffer tanks, pool heating, etc.). This way, other energy sources (e. g. wood or oil) can be saved.

So that each phase of the heating element can be controlled separately, each phase must be connected individually to a relay.
To do this, connect phase 1 (brown) to pin 3 on the Harting plug (10-pin). Continue from pin 4 to the heating element. Use pins 5/6 and 7/8 for phase 2 (black) and phase 3 (gray).
Loop through the neutral conductor N via pin 9/10.
A cable (5G1.5) from the sub-distribution board to the Harting plug and a cable (5G1.5) from the Harting plug to the heating element are recommended.
For detailed information on connecting the heating element, please refer to the manufacturer’s installation instructions.

	NOTICE
Mögliche Beschädigung des Systems Schäden am System durch die Verwendung von nur einer Phase für den Anschluss. Verwenden Sie drei verschiedene Phasen für den Anschluss.

After installing the components, the app still needs to be installed.
To do this, proceed as described in the section Activation of the app in the FEMS App Center.

Der manuelle Modus ist nur für den vorübergehenden Betrieb geeignet. Für den dauerhaften Betrieb ist die externe Relaisansteuerung zu verwenden.

11.3. Control of a heating element greater than 6 kW
(control via external relay)

The externally installed relays must be laid out according to the power of the installed heating element.

So that each phase of the heating element can be controlled separately, each phase must be connected individually to the internal relay via an additional external relay.
Connect L1 to pin 3 via a MCB B6 fused. Route phase L1 from pin 4 to the external relay and connect to A1. A2 must be connected to neutral.
Proceed in the same way as step 2 with the other two phases. Connect K2 and K3 via pins 5/6 and 7/8.

As an alternative to L2/L3, L1 can of course also be looped through, or:
Alternatively, control the contactors/relays with 24 V. If another voltage source is used, do not connect A2 to N.

The power supply of the heating element must then be connected to the switching contacts of the relays.
For detailed information on connecting the heating element, please refer to the manufacturer’s installation instructions.

After installing the components, the app still needs to be installed.
To do this, proceed as described in the section Activation of the app in the FEMS App Center.

11.4. Controlling a CHP unit

The integration of a combined heat and power plant (CHP) into electrical energy management is an advanced form of sector coupling of electricity and heat.

This allows using the CHP as an electrical generator that is independent of the time of day and weather conditions. When the state of charge of the electrical energy storage system is low, the CHP is given a switch-on signal to produce electricity. This is useful, for example, if the battery capacity is not sufficient to cover electricity consumption at night. This avoids the need to purchase expensive current from the grid.

When the battery is charging, this signal is stopped again to prevent the CHP’s current from being fed into the grid unnecessarily.

The enable signal for starting the CHP can be connected to pins 5/6 via the Harting plug (16-pin — C).
For detailed information on connecting the CHP, please refer to the manufacturer’s installation instructions.

After installing the components, the app still needs to be installed.
To do this, proceed as described in the section Activation of the app in the FEMS App Center.

11.5. Additional AC meter

If additional meters have been installed for monitoring other consumer loads or generators, these must be integrated into the circuit in accordance with the manufacturer’s instructions.
The communicative integration is shown below using a 3-phase sensor without a current transformer as an example.
Only meters approved by FENECON can be integrated.
The first production meter is always integrated with Modbus ID 6. All others in ascending order. The baud rate is 9600.

Connect the cores to pin 3/4 on the Harting plug (16-pin — A).
Connect the white core (alternative color possible) to terminal 3.
Connect the brown core (alternative color possible) to terminal 4.

For example SOCOMEC E24

The brown wire (alternative color possible) is connected to the meter at connection point 2 and the white core (alternative color possible) is then connected to 3.
A terminal resistor with 120 Ω must be installed between (+) and (-) (A/B) on the last bus device.

For example KDK 4PU

The brown wire (alternative color possible) is connected to the meter at connection point 8 and the white core (alternative color possible) is then connected to 7.
A terminal resistor with 120 Ω must be installed between (+) and (-) (A/B) on the last bus device.

If several meters are to be installed, they can be connected in series for communication purposes. For this purpose, the first meter can be bridged to the second, etc. The Modbus address must be set in ascending order.
Link to the overview page of the installation and configuration instructions for energy meters

Once the components have been installed, the app still needs to be installed.

To do this, proceed as described in the section Activation of the app in the FEMS App Center.

11.6. Activation of the app in the FEMS App Center

After installing the hardware FEMS App extension, it still needs to be activated in the App Center. To do this, proceed as follows:

https://portal.fenecon.de

Log in with your installer account.

First check whether updates are available for the FEMS.

12. Updating the FEMS

To be able to use all FEMS Apps extensively and in the latest version, carry out a system update to the latest version.

Open the burger menu at the top left of FENECON Online Monitoring.

Illustration 29. Burger to side menu — System update — Step 1

Select Settings.

FENECON Online Monitoring, Einstellungen

Illustration 30. Side menu — System update — Step 2

Select FEMS System.

Illustration 31. App Center — System update — Step 3

Click on INSTALL LATEST VERSION to update the system. If the latest version is already installed, you do not need to do anything else.

Illustration 32. App Center — System update — Step 4

To return to the settings menu after the FEMS system update:
Click on the arrow at the top left. This applies to all submenus in the Settings area.

Illustration 33. Back to the Settings menu

13. Starting point: FEMS App Center

After you have performed a system update, open the FEMS App Center.
1. Alternatively, go to the FEMS App Center via the top left burger menu in the FENECON Monitoring.

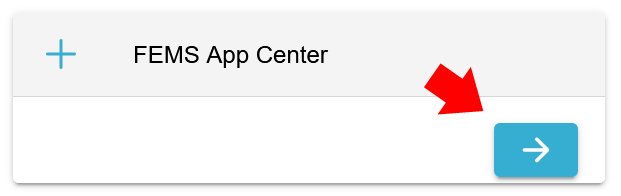

Illustration 34. App Center — Step 1

You are now in the App Center. From here you can redeem and register licence keys for apps, install new apps and edit or subsequently configure apps that are already installed.

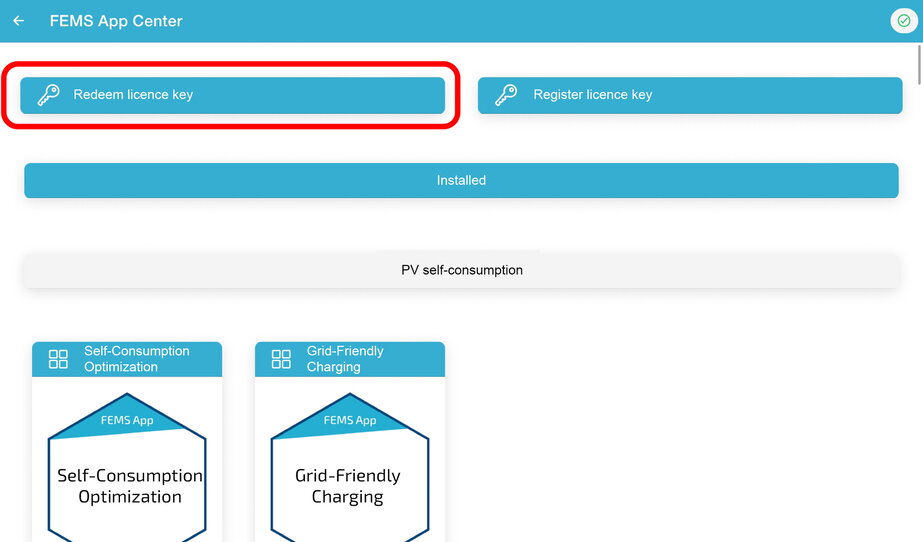

Illustration 35. App Center — Step 2

13.1. Installation of further FEMS Apps

The following instructions show an example of how to install an FEMS App PV inverter.

There are two ways to install an FEMS App via the App Center.

13.1.1. Installation after redeeming a licence key

After a licence key has been redeemed, a selection of available apps that can be installed is displayed.

The App Center offers a search bar and a filter option to get to the desired app more quickly:

Illustration 36. Search for a specific app in the App Center

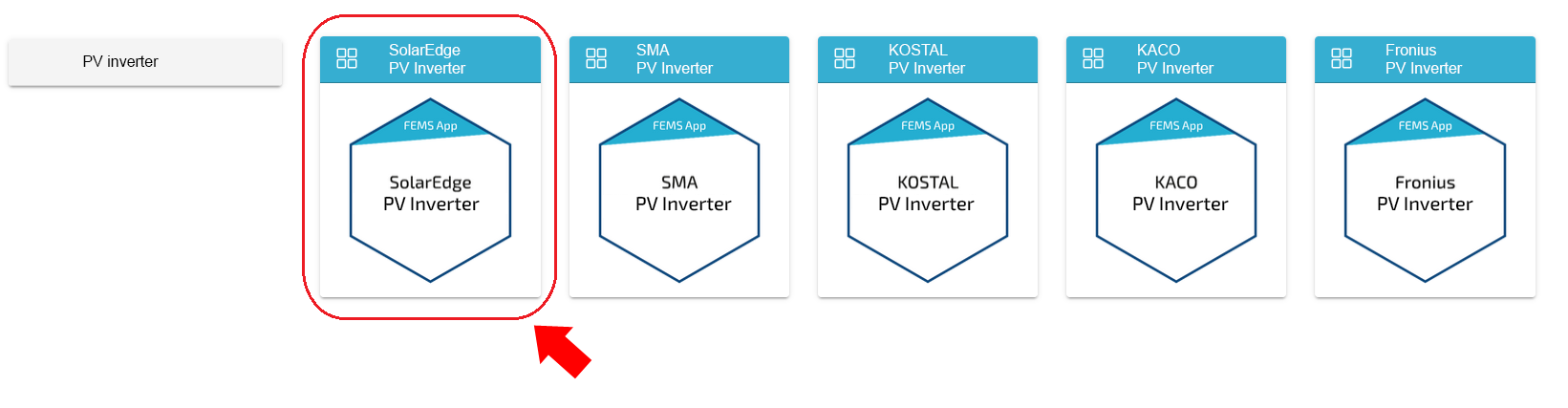

In the example, the FEMS App SMA PV Inverter was searched for. This app is selected by clicking or tapping on the tile.

Illustration 37. App installation — Variant 1 — Step 1

You will then be taken to the app overview:

Illustration 38. App installation — Variant 1 — Step 2

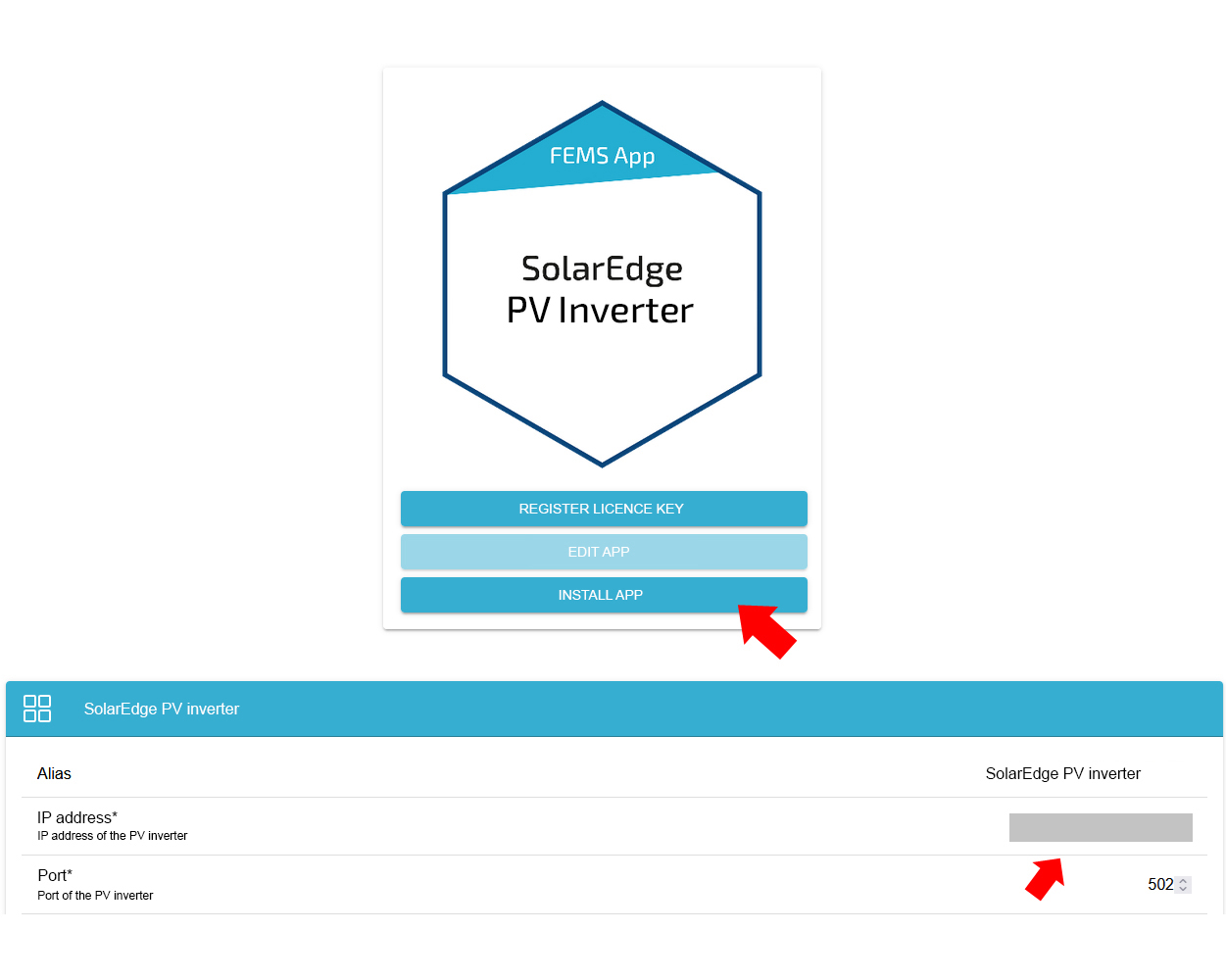

Select the INSTALL APP button.

You will then be taken to the installation wizard for the respective app:

FEMS, App SMA PV Inverter — Installationsassistent

Illustration 39. App installation — Variant 1 — Step 3

Some of the input fields are pre-filled. Nevertheless, enter your data if it differs from the default values (e. g. IP address). Otherwise, the default values can be retained (e. g. port, Modbus unit ID).

Mandatory fields are marked with (*)

Check your entries and make sure that they are correct. Otherwise the respective app will not work properly!

Select the INSTALL APP button again.

Once the installation process has been successfully completed, the new app will appear in the App Center overview in the Installed category.

FEMS, App SMA PV Inverter wurde erfolgreich installiert

Illustration 40. App installation — Variant 1 — Step 4

13.1.2. Direct installation

You can also install an app directly. To do this, go to the App Center overview and search for the desired app.

Only apps from the "Available" category can be installed.

Illustration 41. Search for a specific app in the App Center

In the example, the FEMS App SMA PV Inverter was searched for. This app is selected by clicking or tapping on the tile.

Illustration 42. App installation — Variant 2 — Step 1

You will then be taken to the individual view of the app:

Illustration 43. App installation — Variant 2 — Step 2

Select the INSTALL APP button.

An input mask for redeeming a licence key appears:

Illustration 44. App installation — Variant 2 — Step 3

You have two options here:

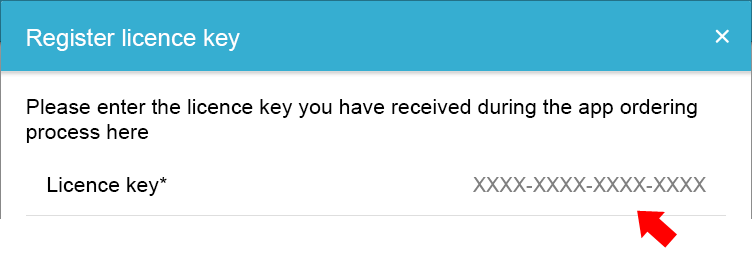

Redeem a new licence key directly: If you have not yet registered a licence key or wish to redeem a new licence key, enter the 16-digit key in the corresponding field and then click on VALIDATE LICENCE KEY.

The entered licence key is then checked for validity.

Illustration 45. Redeem new licence key directly

If the licence key is valid, it can be registered by clicking on the button of the same name.

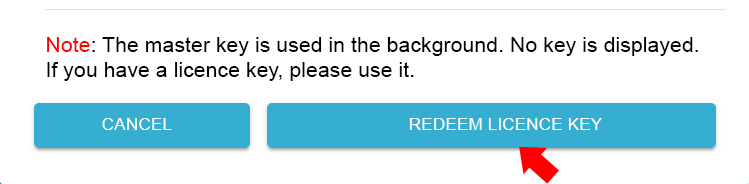

⇒ REDEEM LICENCE KEY

If the licence key is invalid, please check your entry and try again.

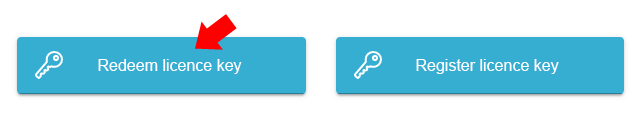

Redeem an already registered licence key: In this case, the button in the App Center looks like this:

If you want to redeem an already registered licence key, check the corresponding box and select the appropriate, already registered licence key via drop-down menu.

Bereits registrierten Lizenzschlüssel einlösen

Illustration 46. Redeem already registered licence key

Then click on the REDEEM LICENCE KEY button.

You will then be taken to the installation wizard for the respective app.

Illustration 47. App installation — Variant 2 — Step 4

Some of the input fields are pre-filled. Nevertheless, enter your data if it differs from the default values (e. g. IP address). Otherwise, the default values can be retained (e. g. port, Modbus unit ID).

Mandatory fields are marked with (*)

Check your entries and make sure that they are correct. Otherwise the respective app will not work properly!

Select the INSTALL APP button again.

Once the installation process is complete, the new app will appear in the App Center overview in the Installed category.

Illustration 48. App installation — Variant 2 — Step 5

14. External control of the inverter

There are various ways to override the inverter from external devices.

Illustration 49. Connection — Curtailment via ripple control receiver

14.1. Ripple control receiver at the AC output

The inverter can be controlled directly via a ripple control receiver. The following plugs supplied with the inverter are required for this.

The inverter’s small parts box contains three plugs that can be plugged into the underside of the inverter.

The plugs are numbered consecutively.

In order for the functions to be activated, activate the ripple control receiver during commissioning.
Then confirm with OK.

The active power of the FENECON Home 20 & 30 inverter can be controlled directly by the energy supply company (grid operator) via a ripple control receiver (RCR).
The behavior of the inverter in the various control stages can be described as follows.

100 % → Standard signal, inverter works without restrictions (20/30 kW)
60 % → Inverter output power is reduced to 60 %. (12/18 kW)
30 % → Inverter output power is reduced to 30 %. (6/9 kW)
0 % → Inverter output power is reduced to 0 %. (0/0 kW)

If other inverters are used, these must also be connected separately to the RCR; how exactly depends on the grid operator and the RCR used.

In the event of a curtailment to 0 %, the grid feed-in of the inverter is stopped completely, i.e. the consumer loads are supplied completely from the grid.
Only the battery continues to be charged.

A cable with at least 5 cores with a cross-section of 0.34 mm² to 0.75 mm² is recommended.
Feed the cable through one of the holes of the multi-hole seal.
Attention: One feedthrough is already blocked by the communication cable between the inverter and EMS.
Leave the other openings of the multi-hole seal closed.

Connect the cores of the control cable as shown in the picture.

In order for the inverter to synchronize to the grid, a jumper must be connected between pin 7 and pin 8.
A core with a cross-section of 0.34 mm² to 0.75 mm² is recommended.

Plug in the two connectors on the underside of the inverter.

Attach the cover to the inverter and tighten the bolt connection.

14.2. Ripple control receiver on grid connection point

The system can be controlled directly via the ripple control receiver (RCR).

ACHTUNG: Beachten Sie hierbei die Vorgaben Ihres Netzbetreibers bei Anschluss des externen Funkrundsteuerempfängers.

If other inverters are used, these must also be connected separately to the RCR; how exactly depends on the grid operator and the RCR used.

The behavior of the inverter in the various control stages can be described as follows:

100 % → Standard signal, inverter works without restrictions (20/30 kW).
60 % → Feed-in power at the grid connection point is reduced to 60 % (12/18 kW).
30 % → Feed-in power at the grid connection point is reduced to 30 % (6/9 kW).
0 % → Feed-in power at the grid connection point is reduced to 0 % (0/0 kW).

When connecting to the FEMS box, the following contacts must be connected in the Harting plug:

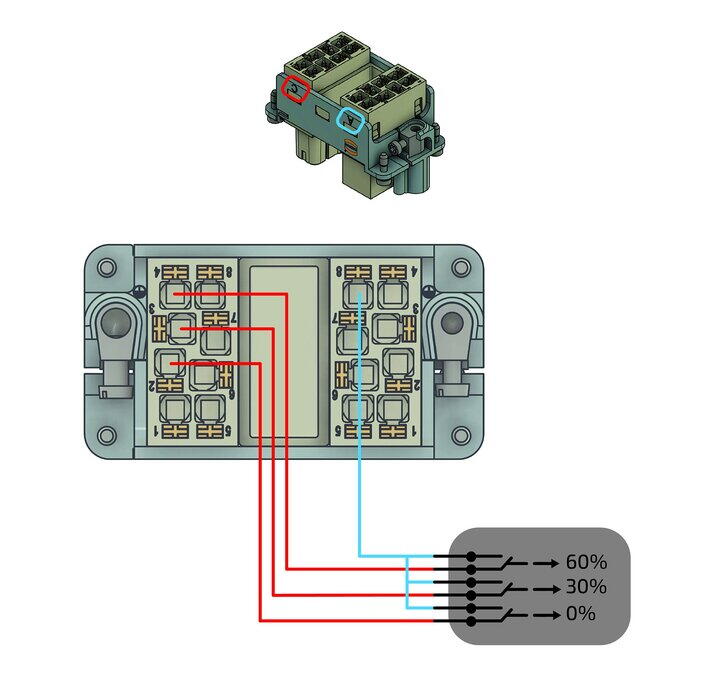

Illustration 50. Connection — Ripple control receiver on GCP — Home 20 & 30

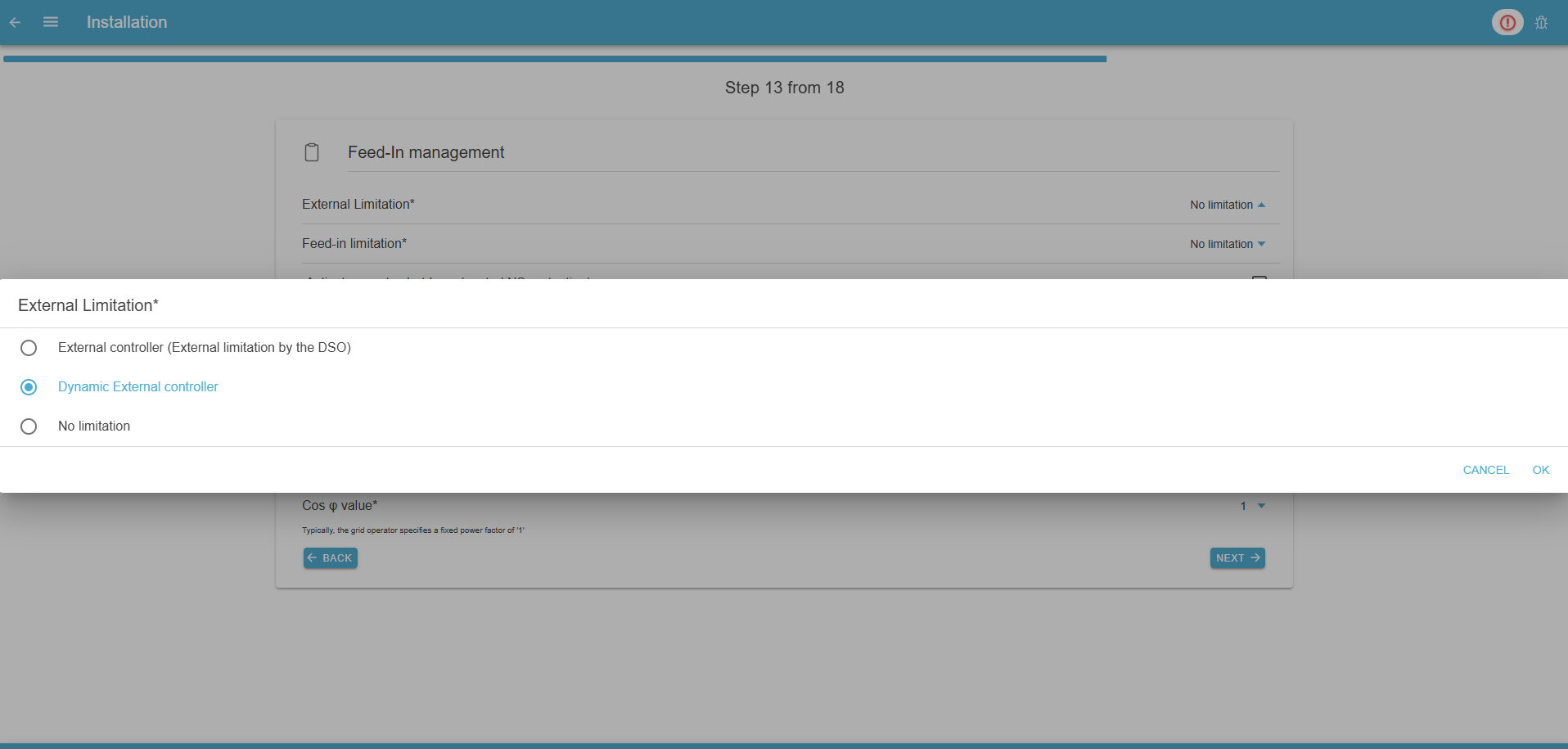

During commissioning, the dynamic ripple control receiver must be selected under External limitations:

The ripple control receiver now regulates the grid limitation to the grid connection point and no longer to the AC output. This means that it is also possible to charge the battery and supply the consumer loads with PV production in the event of grid limitation.

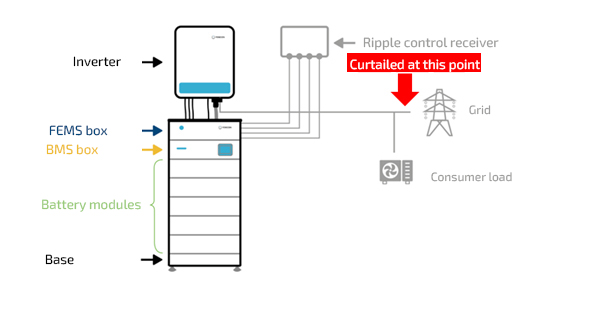

Illustration 51. Connection — Curtailment via ripple control receiver

14.3. Remote shutdown

The inverter can be disconnected from the grid when remote disconnection is activated, e. g. via a central grid and plant protection. One of the following plugs supplied with the inverter is required for this.

The inverter’s small parts box contains three plugs that can be plugged into the underside of the inverter.

The plugs are numbered consecutively

To activate the functions, the remote switch-off must be activated during commissioning.
Then confirm with OK.
Continue to the next step with Next.

The emergency power output is still active (if activated) and supplies the emergency power to the consumer loads.

A cable with 2 cores and a cross-section of 0.34 mm² to 0.75 mm² is recommended.
Feed the cable through one of the holes in the multi-hole seal of the cover.
Attention: One feedthrough is already blocked by the communication cable between the inverter and EMS.
Leave the other openings of the multi-hole seal closed.

The core of the disconnection device must be connected to pin 7 and pin 8 so that the inverter can be disconnected from the grid.
The switch-off device must be equipped with a break contact
→ In normal operation, pins 7 and 8 must be bridged via the switch-off device.

Plugging in the 7-pin connector on the underside of the inverter.

Attach the cover to the inverter and tighten the bolt connection.

This method can also be used to connect P,ave monitoring.

14.4. Section 14a of the Energy Industry Act (EnWG)

The inverter can be limited to a maximum reference power of 4.2 kW. The digital input of the EMS must be assigned for this.

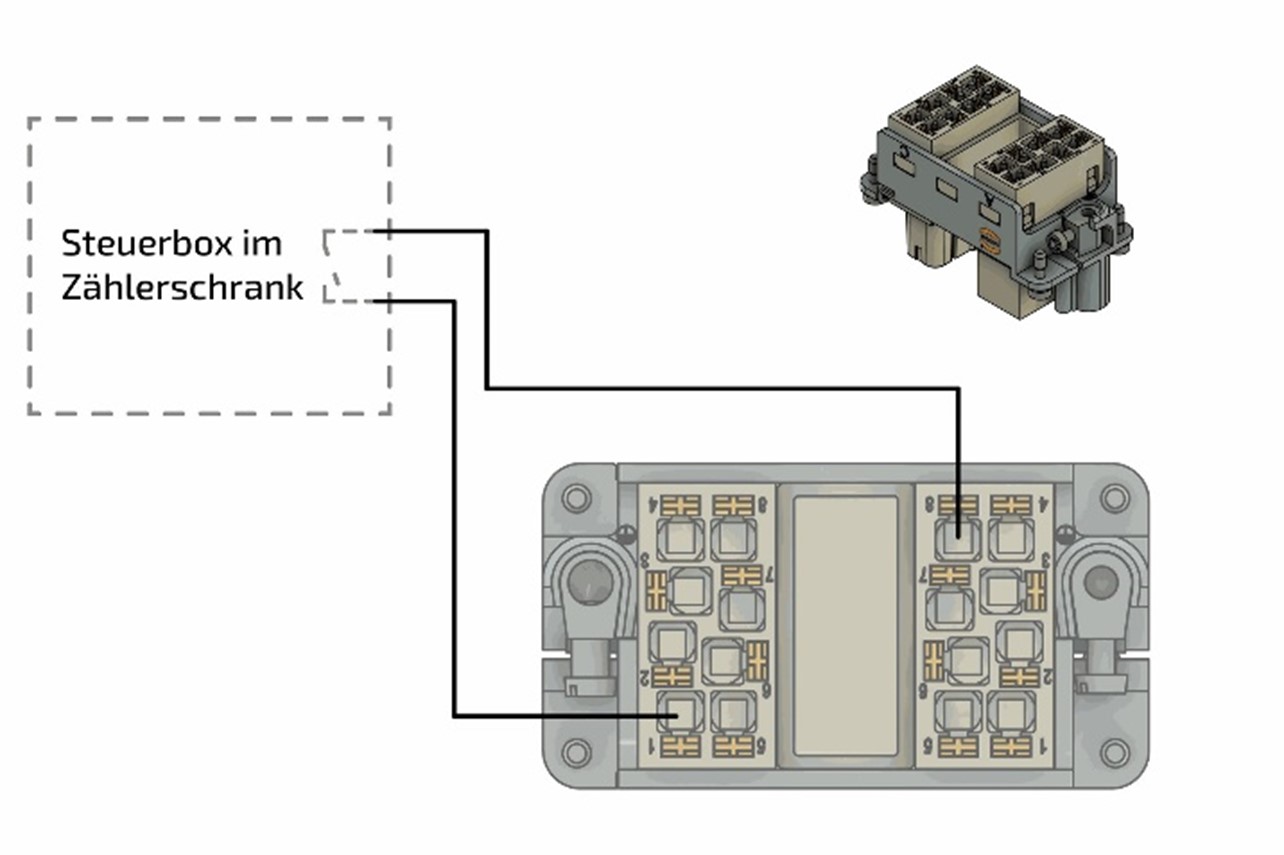

The signal can be connected to pins 1 ( C ) and 8 ( A ) via the Harting plug (16-pin — A & C).
For detailed information on connecting the FNN control box, please refer to the manufacturer’s installation instructions.

15. Troubleshooting

15.1. Errors in Online Monitoring

The system status can be checked after logging in at the top right using the color of the icon. A green tick indicates that everything is OK, an orange exclamation mark indicates a warning (Warning) and a red exclamation mark indicates an error (Fault).

15.1.1. Fault display

System status: Everything is OK

System status: Warning

System status: Error (Fault)

15.1.2. Troubleshooting

You can get a detailed overview of an existing warning or error by clicking on the exclamation mark in the top right-hand corner.

The scroll bar can be used to examine the origin of the warning or error in more detail.
In this example, the error lies with the controller used.

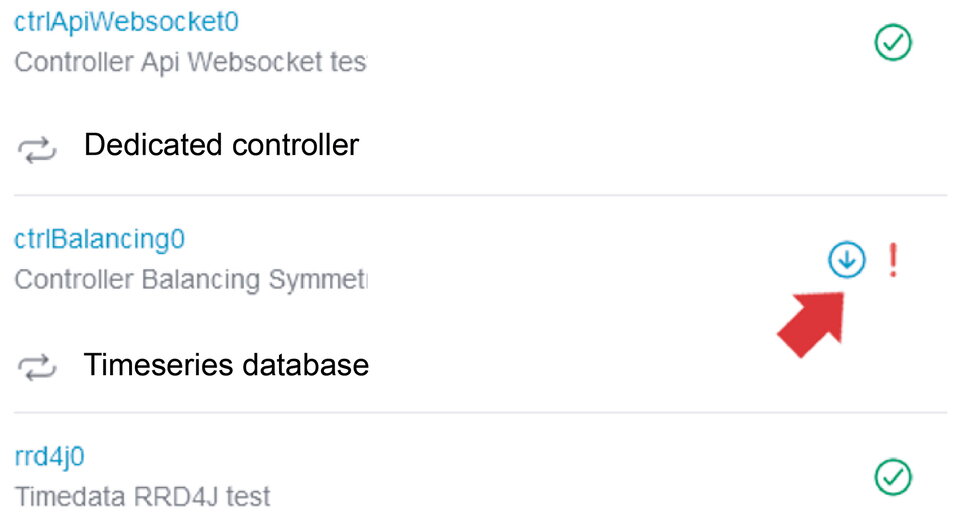

Clicking on the icon (down arrow) displays a more detailed error description depending on the error.

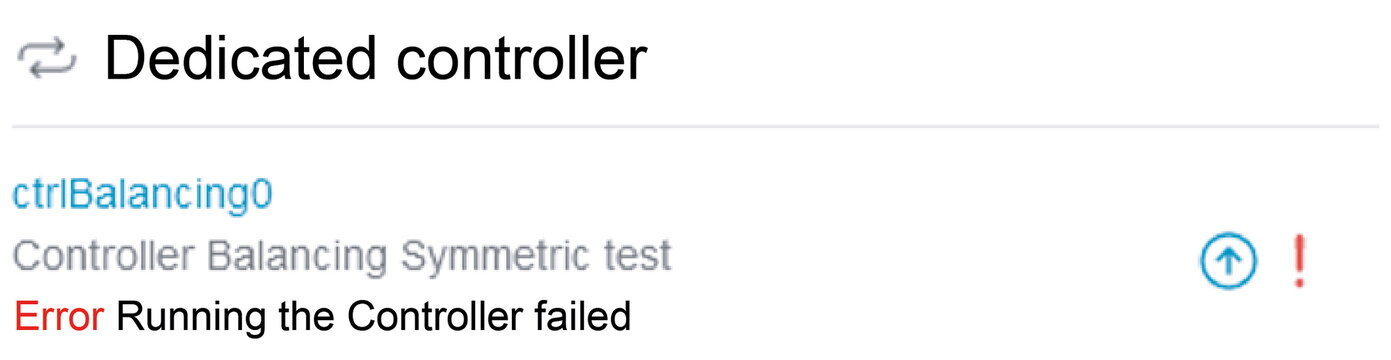

In the example above, an incorrect reference for the grid meter was intentionally entered for test purposes, which is why the controller execution fails.

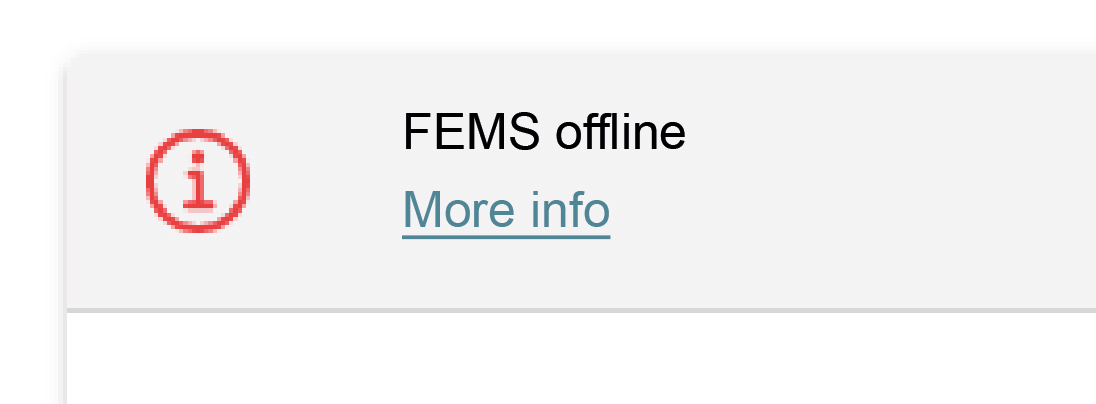

Under certain circumstances, it may happen that the FEMS is not accessible and the error message opposite appears.

If the FEMS is offline, follow the steps displayed below the message.

15.2. FENECON Home 20 & 30 inverter

15.2.1. Fault display

Faults are indicated by a red LED next to "SYSTEM".

Illustration 52. Fault display on the FENECON Home 20 & 30 inverter

15.2.2. Rotary field of the grid connection

Check whether a clockwise rotating field is present at the grid connection.
Otherwise, contact the FENECON Service. You can find the contact details in the Service section.

The LEDs display further information on the status of the inverter.

Table 43. LED status displays — Inverter
Display	Status	Description
		The inverter is switched on and in standby mode.
		The inverter is starting and is in self-test mode.
		The inverter is running normally in grid-parallel or stand-alone mode.
		Overloading of the RESERVE output.
		An error has occurred.
		The inverter is switched off.
		The grid is abnormal and the inverter is in stand-alone mode.
		The grid is normal and the inverter is in parallel mains operation.
		RESERVE is switched off.
		The inverter is not connected to the internet. Communication takes place via the EMS box. Therefore, there is no LED indication here.

15.3. Battery tower

15.3.1. Fault display

Faults are displayed on the BMS box via a red LED.

The various errors are indicated by LED codes.

Speicher-Status

Speicher-Information

LEDs

blau/rot

1

2

3

4

Bootloader

Starten

Master/Slave

Parallel-Box

Extension-Box

Prüfmodus

Einzel- oder Parallelverschaltung

SoC-Display

Laden

0 % bis 25,0 % SoC

25,1 % bis 50,0 % SoC

50,1 % bis 75,0 % SoC

75,1 % bis 99,9 % SoC

100 % SoC

Entladen und Standby

100%-75,1%

75,0%-50,1%

50,0%-25,1%

25,0%-0%

Fehler

Überspannung

Unterspannung

Übertemperatur

Untertemperatur

Überstrom

SoH zu tief

Int. Kommunikation

Ext. Kommunikation

Adressfehler Parallel

Adressfehler Module

BMS-Box-Sicherung

Modulsicherung

Kontaktfehler

Isolationsfehler

BMS-Fehler

Blue permanently on

Blinking blue

Blue flashing quickly

Red permanently on

15.3.2. Troubleshooting

If faults cannot be rectified or in the event of faults that are not included in the fault list, contact FENECON Service. Cf. Service.

15.4. Fault list

Table 44. Troubleshooting
Component	Error/fault	Measure
Battery module	The battery module has become wet	Do not touch Contact FENECON Service immediately for technical support
Battery module	The battery module is damaged	A damaged battery module is dangerous and must be handled with the utmost care. Damaged battery modules must no longer be used. If you suspect that the battery module is damaged, stop operation and contact FENECON Service

15.5. Service

If the system malfunctions, contact the FENECON Service:

Phone: +49 (0) 9903 6280-0

E-mail: service@fenecon.de

Our service hours:
Mon.-Thurs. 08:00 to 12:00 | 13:00 to 17:00
Fri. 08:00 to 12:00 | 13:00 to 15:00

16. Technical maintenance

16.1. Tests and inspections

CAUTION

Mögliche Gefährdung durch unsachgemäße Inspektionen
Bei Inspektionsarbeiten ist sicherzustellen, dass das Produkt im sicheren Zustand ist. Nicht ordnungsgemäß durchgeführte Inspektionen können schwerwiegende Folgen für Personen, die Umwelt und das Produkt selbst verursachen.

Inspection work must only be carried out by trained and qualified specialists.
Beachten Sie für alle Einzelkomponenten die Wartungshinweise der Komponentenhersteller.

Check the product and the cables regularly for visible external damage. In the event of defective components, contact FENECON Service. Repairs must only be carried out by a qualified electrician.

16.2. Cleaning

Cleaning agents: The use of cleaning agents can damage the electrical energy storage unit and its parts.
It is recommended that the electrical energy storage unit and all its parts are only cleaned with a cloth moistened with clean water.

NOTICE

Schäden durch falsche Reinigungsmittel
Das gesamte Produkt ist regelmäßig zu reinigen. Hierfür dürfen nur entsprechende Reinigungsmittel verwendet werden.

Die Reinigungsmittel müssen frei von Chlor, Brom, Jod oder deren Salze sein.
Stahlwolle, Spachteln und dergleichen dürfen für die Reinigung keinesfalls verwendet werden.
Der Einsatz nicht geeigneter Reinigungsmittel kann zu Fremdkorrosion führen.

16.3. Maintenance work

No regular maintenance work needs to be carried out on the system. Nevertheless, check the status of your electrical energy storage system regularly.

Regular re-referencing of the electrical energy storage system is recommended, i.e. it must be completely discharged (SoC = 0 %) and then fully charged again (SoC = 100 %), as otherwise capacity may be lost.

16.4. Repairs

In the event of defective components, contact FENECON Service.

16.5. Warranty cases

Warranty claims must be reported to FENECON in text form (e. g. by e-mail) within the warranty period. The notification must be made within a cut-off period of 8 weeks after the end customer has become aware of the warranty claim or could have become aware of it without gross negligence.

17. Advice for fire departments when dealing with FENECON Home & Commercial systems

The FENECON Home and Commercial systems operate in the low-voltage range, which means that they are operated with voltages of less than 1,500 volts direct current (DC) and less than 1,000 volts alternating current (AC).

It may be useful to install an additional switch that disconnects the building from the emergency power supply. This makes it easier for the fire department to act safely and quickly in an emergency.

Illustration 53. Installation — Maintenance switch using the example of Home 20/30

For a precise procedure for emergency services, it is recommended to ask the relevant fire academies and request the corresponding information sheets and pocket cards for battery energy storage systems.

18. Flood safety measures FENECON Home & Commercial

First steps after the water has receded

Even if your battery energy storage system looks undamaged on the outside:

Do not put the system back into operation yourself.
Ventilate the room well before entering (open windows from the outside if possible).
Avoid sparks (no smoking, no lighters).

Why a review is important:

Even though LFP batteries are very safe, water or moisture can:

Cause short circuits in the electronics.
Trigger corrosion of electrical connections.
Create isolation problems that only become apparent later.

These problems do not have to occur immediately, but can develop over weeks.

Commission a professional inspection

Please contact:

Your installer or a qualified electrician with experience in battery energy storage systems.
FENECON, the manufacturer of your system.
Your insurance company — document the damage with photos.

The qualified specialist will check:

Whether water has entered the system.
Whether electronic components have been damaged.
Whether a recommissioning is safely possible or a replacement is necessary.

No recommissioning without approval

Battery energy storage systems that have come into contact with water must only be put back into operation after a professional inspection and express approval by a qualified specialist. This is for your safety and is often also a prerequisite for your insurance cover.

When replacement is necessary

If your electrical energy storage system needs to be replaced:

The disposal of the defective system must be carried out professionally by specialized companies.
Your installer will usually organize the removal and disposal.
Do not attempt to transport damaged batteries yourself

Storage disposal until collection

If damaged battery modules cannot be collected immediately:

Store them well ventilated outdoors with sufficient clearance from flammable materials.
Storage in a
- Sand bed.
- Fireproof container, not gas-tight, ventilated.
- Water bath, e. g. metal tub, completely covered with water.
Keep children and pets away.

Status: October 2025
Source: According to Specifications of the German Energy Storage Systems Association (BVES) e.V..

19. Handover to the operator

19.1. Information for the operator

The following information must be provided to the operator:

Table 45. Information for the operator
Component	Information/Document	Comment
System	FEMS number
System	Login data for Online Monitoring
System	Operating instructions

20. Transport

This section contains information on external and internal transportation of the product.

Transportation is the movement of the product by manual or technical means.

Check that the parts and outer packaging are in perfect condition.
Verwenden Sie für den Transport nur geeignete und geprüfte Anschlagmittel und Hebezeuge!
Prüfen Sie, dass
- Sie persönliche Schutzausrüstung tragen,
- all screw and bolt connections are tightened firmly,
- die Transportsicherung ordnungsgemäß befestigt wurde.

	WARNING
Gefahr durch angehobene Lasten Der Aufenthalt unter schwebenden Lasten ist verboten. Stellen Sie sicher, dass sich während des Transportes niemand an oder auf dem Produkt befindet. Keine Personen als Gegengewicht einsetzen. Stellen Sie sicher, dass sich niemand unter schwebenden Lasten befindet.

	CAUTION
Gefahr durch unsachgemäßen Transport! Unsachgemäßer Transport kann gesundheitliche Risiken verursachen. Batterien dürfen nur von Fachpersonal ausgebaut bzw. gewechselt und durch einen Gefahrentransport transportiert werden. When transporting the batteries, observe the current laws, regulations and standards, e. g. the Hazardous Goods Transportation Act (GGBefG).

Legal regulations
The product is transported in accordance with the legal regulations of the country in which the product is transported off-site.

21. Dismantling and disposal

21.1. Prerequisites

The power supply to the electrical energy storage unit is interrupted and secured against being switched on again.

	CAUTION
Sharp and pointed edges Injuries to the body or limbs caused by sharp and pointed edges. Tragen Sie bei Arbeiten am Produkt immer geeignete Schutzausrüstung (schnittfeste Schutzhandschuhe, Sicherheitsschuhe, Schutzbrille)!

21.2. Dismantling

The electrical energy storage system may only be dismantled by authorized qualified electricians.
Dismantling work must only be carried out when the system has been taken out of operation.
Before starting disassembly, secure all components to be removed against falling, tipping over or moving.
Dismantling work must only be carried out when the system is shut down and only by service personnel.
The dismantling instructions of the component manufacturer (→ Appendix, Applicable documents) must be observed.
When transporting the battery modules, the current laws, regulations and standards must be observed (e. g. Dangerous Goods Transportation Act — GGBefG).

21.3. Disposal

The FENECON electrical energy storage system must not be disposed of with normal household waste.
The FENECON electrical energy storage system is RoHS and REACH compliant.
Disposal of the product must comply with local regulations for disposal.
Avoid exposing the battery modules to high temperatures or direct sunlight.
Avoid exposing the battery modules to high humidity or corrosive atmospheres.
Dispose of the electrical energy storage system and the batteries it contains in an environmentally friendly manner.
Contact FENECON GmbH to dispose of the used batteries.

For the disposal of all components, the usual procedures at the site and the applicable environmental protection regulations must be applied!
For the disposal of auxiliary and operating materials, observe the local regulations and information from the safety data sheets.
For disposal, please also observe the information in the individual operating instructions for the respective components.
If in doubt about the disposal method, contact the manufacturer or the local waste disposal company.
